Rittal

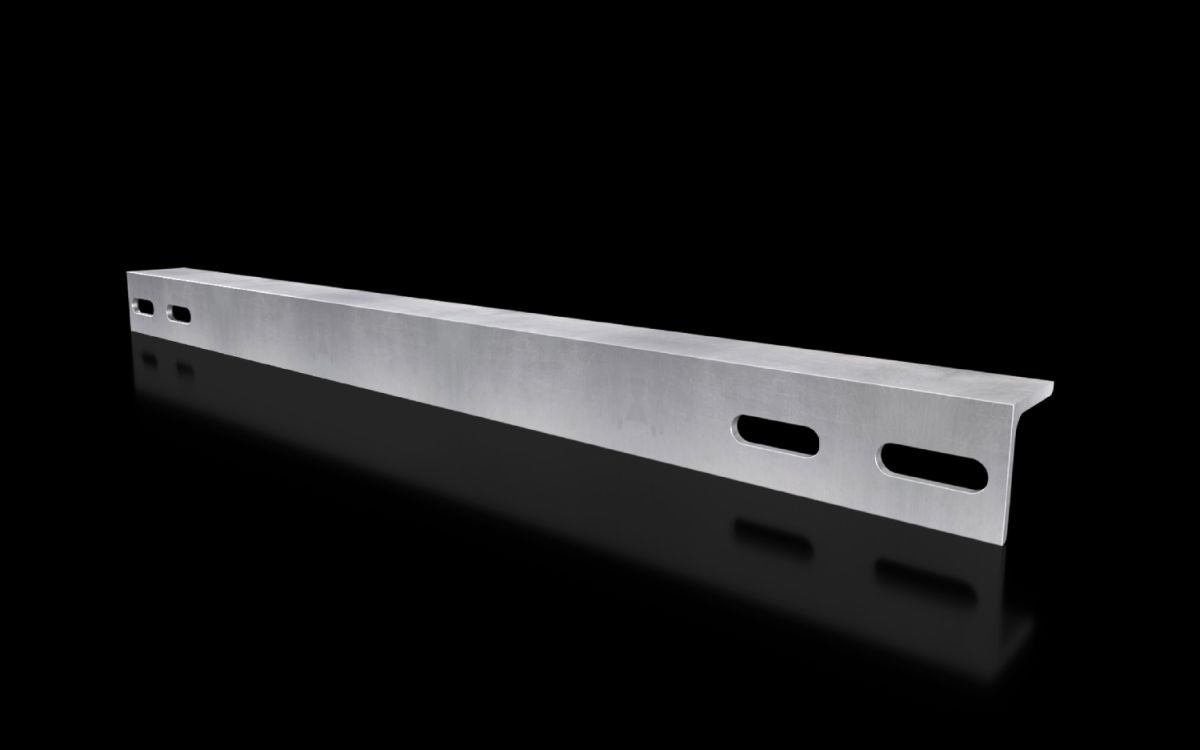

Rittal VX 8619.410, Cable clamp rail Right-angle section for VX, TS, VX SE, PC, base/plinth system VX
Rittal VX 8619.410, Cable clamp rail Right-angle section for VX, TS, VX SE, PC, base/plinth system VX
Regular price
€50,19
Regular price
Sale price
€50,19
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:VX 8619.410
For strain relief with cable entry. Depth-variable mounting on a 25 mm pitch pattern on the horizontal enclosure section or in the base/plinth.
| Article number: | VX 8619.410 |
| Product description | For strain relief with cable entry. Depth-variable mounting on a 25 mm pitch pattern on the horizontal enclosure section or in the base/plinth. |
| Material | Steel |
| Surface finish | Zinc-plated |
| Supply includes | Assembly parts |
| VX installation options | In enclosure width 600 mm, in the base |
| VX SE installation options | In enclosure width 600 mm, in the base |
| AX installation options | In enclosure width 600 mm, in conjunction with rail for interior installation AX and base configuration rail for AX |
| AX stainless steel installation options | In enclosure height 600 mm, in conjunction with rail for interior installation with base configuration rail |
| PC installation options | In enclosure width 600 mm, in the base |
| WI installation options | In enclosure width 600 mm, in the base |
| VX base/plinth installation options | In base/plinth width/depth 600 mm, in conjunction with holder/spacer |
| Installation options for VX base/plinth, stainless steel | In base/plinth width 600 mm, in conjunction with one M8 nut |
| AX base/plinth installation options | In base/plinth width 600 mm |
| To fit | Base/plinth system AX |
| Dimensions | Length: 554 mm |
| To fit | Enclosure type: VXVX SEPCIWAXCX pedestalCX one-piece consoleWidth: = 600 mm |
| Packs of | 2 pc(s). |
| Net weight | 2.8 kg |
| Gross weight | 3.161 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177921931 |
| ETIM 9 | EC000322 |
| ECLASS 8.0 | 27400604 |
| Product description | VX Cable clamp rail, mounting angle, for W: 600 mm |
