Rittal

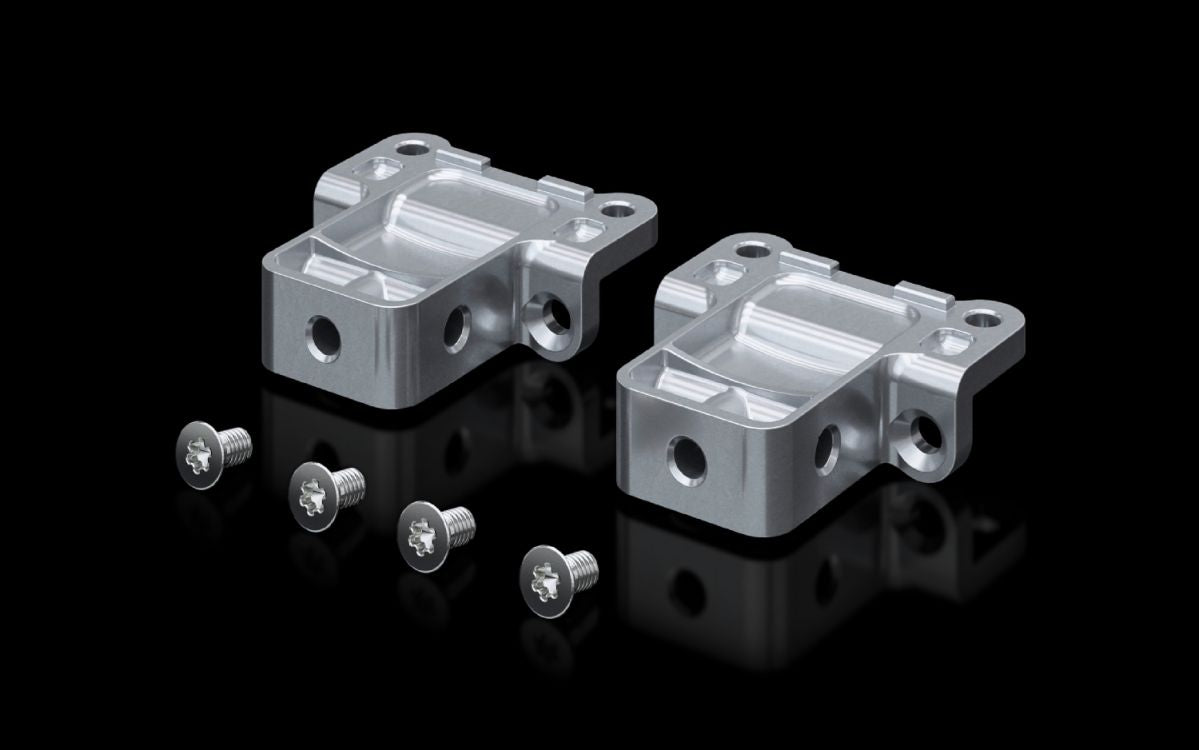

Rittal VX 8619.470, Bracket/spacer for base/plinth system VX, sheet steel
Rittal VX 8619.470, Bracket/spacer for base/plinth system VX, sheet steel
Regular price
€32,48
Regular price
Sale price
€32,48
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:VX 8619.470
For flexible attachment of C rails or cable clamp rails. For installation in the VX base/plinth or on the enclosure frame section.
| Article number: | VX 8619.470 |
| Material | Die-cast zinc |
| Supply includes | 2 support / spacer bracketsAssembly parts |
| To fit | Enclosure type: VXTSVX SE |
| Weight/pack | 0.298 kg |
| Packs of | 2 pc(s). |
| Installation options | On the horizontal and vertical VX enclosure section |
| For threads | M8 |
| To fit | for base/plinth system VX, sheet steel |
| Assembly instruction | In VX SE, on the enclosure section in conjunction with VX adaptor rail |
| Net weight | 0.28 kg |
| Gross weight | 0.289 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177984820 |
| ETIM 9 | EC002620 |
| ETIM 8 | EC000721 |
| ECLASS 8.0 | 27182003 |
| Product description | VX support bracket / spacer |
