Rittal

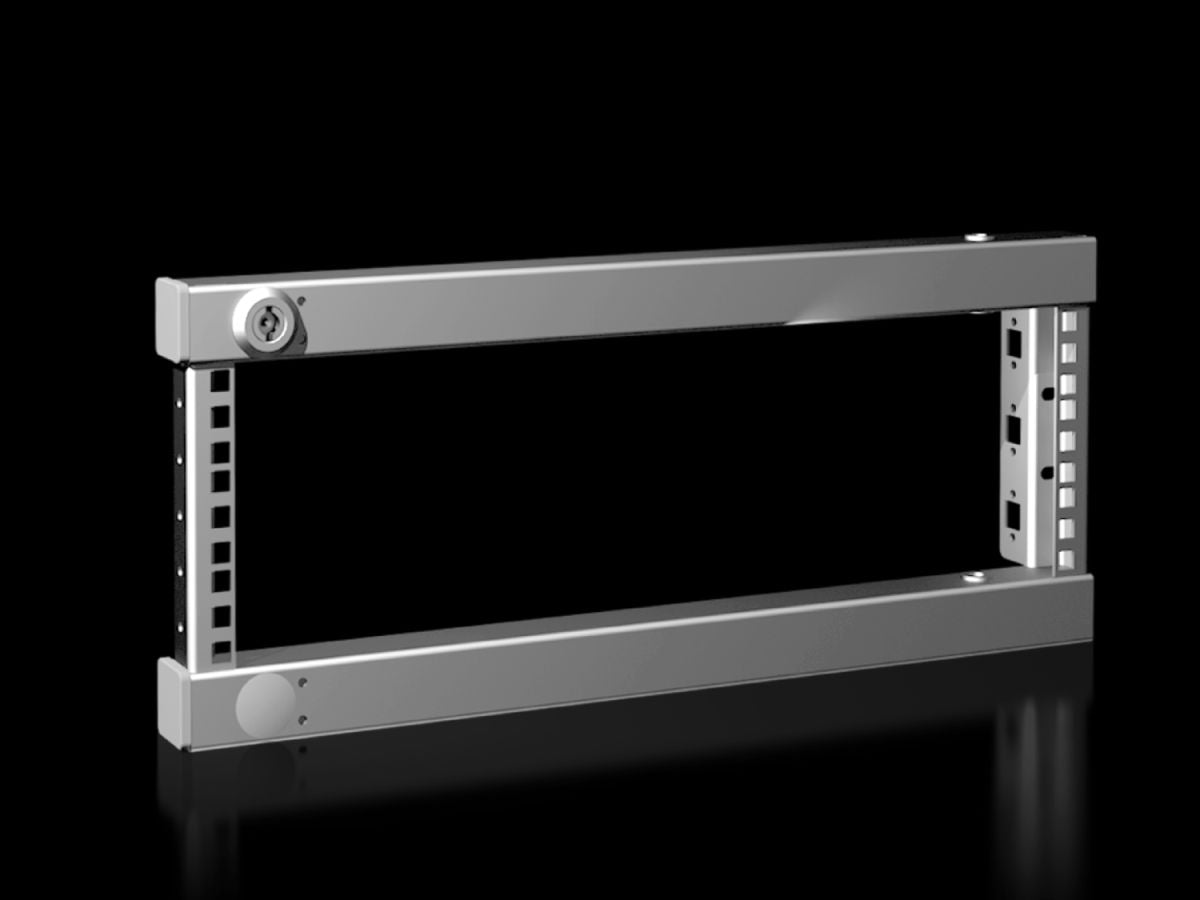

Rittal VX 8619.500, Swing frame, small for VX, VX SE, AX, 600 mm and 800 mm wide enclosures
Rittal VX 8619.500, Swing frame, small for VX, VX SE, AX, 600 mm and 800 mm wide enclosures
Regular price
€100,45
Regular price
Sale price
€100,45
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:VX 8619.500
For mounting 482.6 mm (19") equipment.
| Article number: | VX 8619.500 |
| Product description | For mounting 482.6 mm (19") equipment. |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | 2 x 130° hingesCam with double-bit lock insertParts for attaching to the installation kit |
| Note | The swing frame stay is required to lock the open swing frame |
| Note on Model No. | The installation kit AX is additionally required for internal mounting in AX |
| To fit | Enclosure type: VXVX SEAXWidth: = 600 mm= 800 mmHeight: ≥ 380 mm |
| To fit enclosure type | VX |
| Units | 3 U |
| To fit enclosure type | VX |
| Packs of | 1 pc(s). |
| Net weight | 2.4 kg |
| Gross weight | 2.681 kg |
| Customs tariff number | 94039910 |
| EAN | 4028177919563 |
| ETIM 9 | EC002620 |
| ECLASS 8.0 | 27189261 |
| Product description | VX Swing frame, small, for W: 600/800 mm, 3 U |
