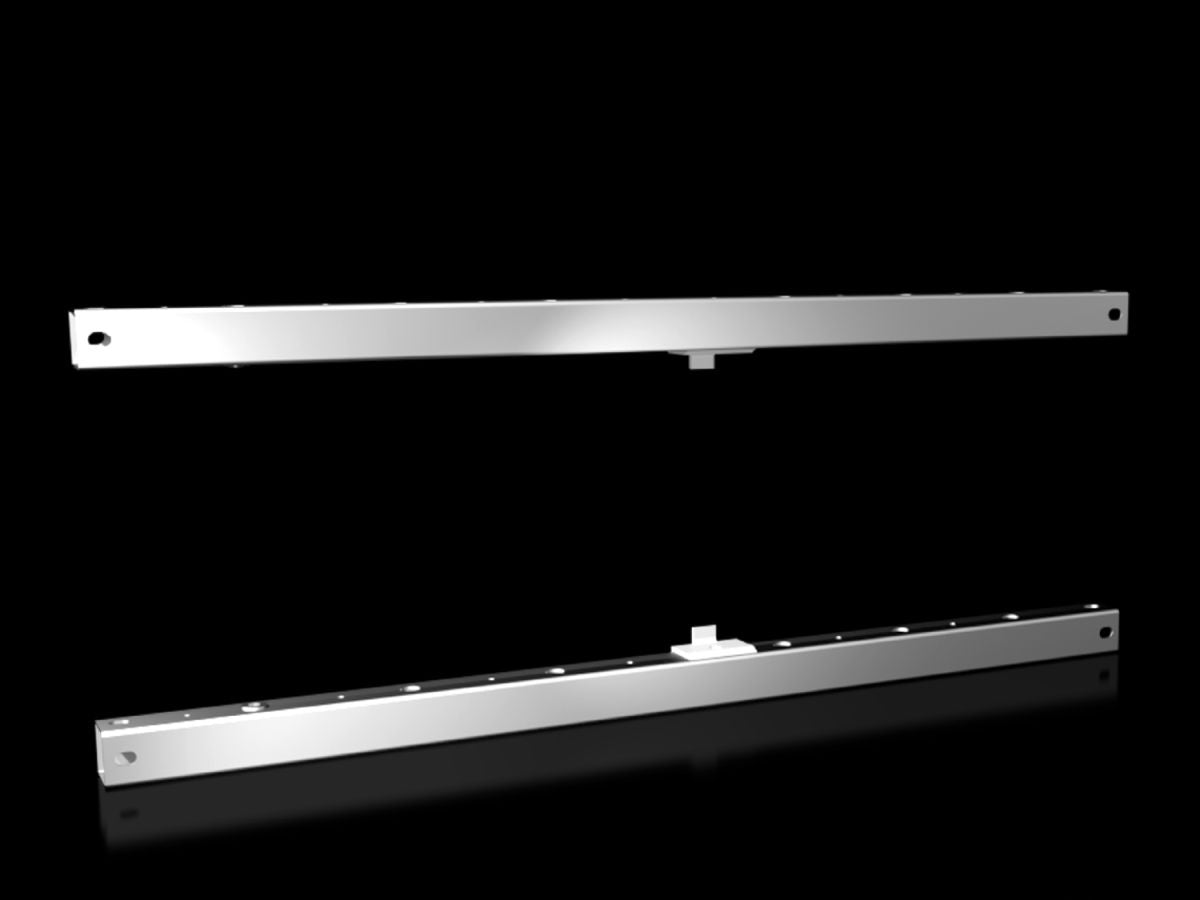

Rittal VX 8619.610, Installation kit for VX swing frame, small, and VX partial mounting plate
Rittal VX 8619.610, Installation kit for VX swing frame, small, and VX partial mounting plate
Regular price
€60,18
Regular price
Sale price
€60,18
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:VX 8619.610
For mounting the swing frame, small in AX, VX, SE or a partial mounting plate (in conjunction with a hinge for partial mounting plates).
| Article number: | VX 8619.610 |
| Product description | For mounting the small swing frame in AX, VX, SE or a partial mounting plate (in conjunction with a hinge for partial mounting plates). |
| Applications | For VX: Directly onto the enclosure section in the foremost position |
| Material | Sheet steel |
| Surface finish | Nickel-plated |
| Supply includes | Assembly parts |
| Installation options | Directly on the enclosure section in the foremost position |
| Note | For installation in AX sheet steel, only in conjunction with mounting kit AX |
| Load capacity (static) | 1,500 N |
| To fit | Width: = 800 mm |
| Packs of | 1 pc(s). |
| Net weight | 3.15 kg |
| Gross weight | 3.28 kg |
| Customs tariff number | 83024900 |
| EAN | 4028177919631 |
| ETIM 9 | EC002620 |
| ECLASS 8.0 | 27189234 |
| Product description | VX Installation kit, for swing frame, small, for W: 800 mm |
