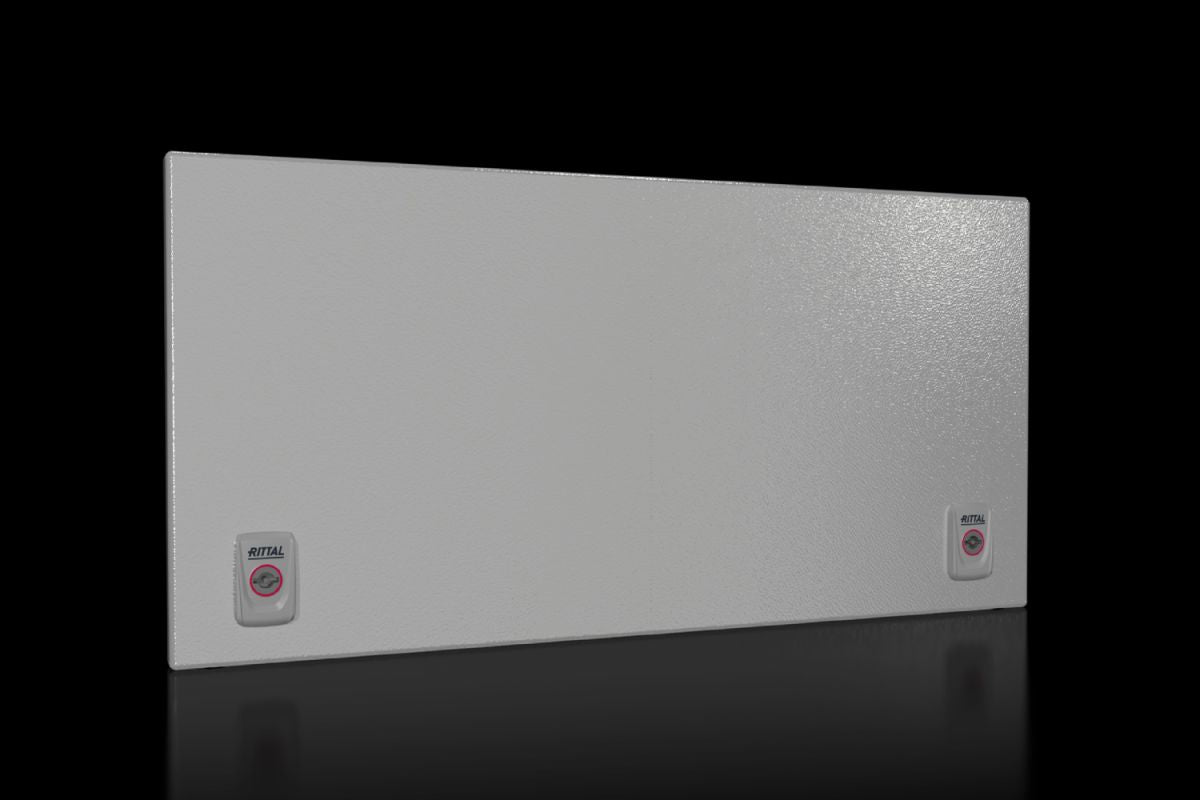

Rittal VX 8620.500, Trim panel, hinged at the top for VX
Rittal VX 8620.500, Trim panel, hinged at the top for VX
Regular price
€121,59
Regular price
Sale price
€121,59
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:VX 8620.500
For the installation of control and display components, in conjunction with a modular front design and protective bar.
| Article number: | VX 8620.500 |
| Product description | For the installation of control and display components, in conjunction with modular front design and protective bar. |
| Material | Sheet steel, 2 mm |
| Surface finish | Textured paint |
| Colour | RAL 7035 |
| Supply includes | Trim panelHingesCam lock with 3 mm double-bit insertAssembly parts |
| Dimensions | Height: 300 mm |
| To fit | Width: 600 mm |
| IP protection category to IEC 60 529 | IP 54 |
| Packs of | 1 pc(s). |
| Net weight | 3.7 kg |
| Gross weight | 4.317 kg |
| PCF per pack (cradle-to-gate) | 15.2 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 94039910 |
| EAN | 4028177922570 |
| ETIM 9 | EC002617 |
| ECLASS 8.0 | 27189260 |
| Product description | VX Trim panel, hinged at the top, WH: 600x300 mm |
