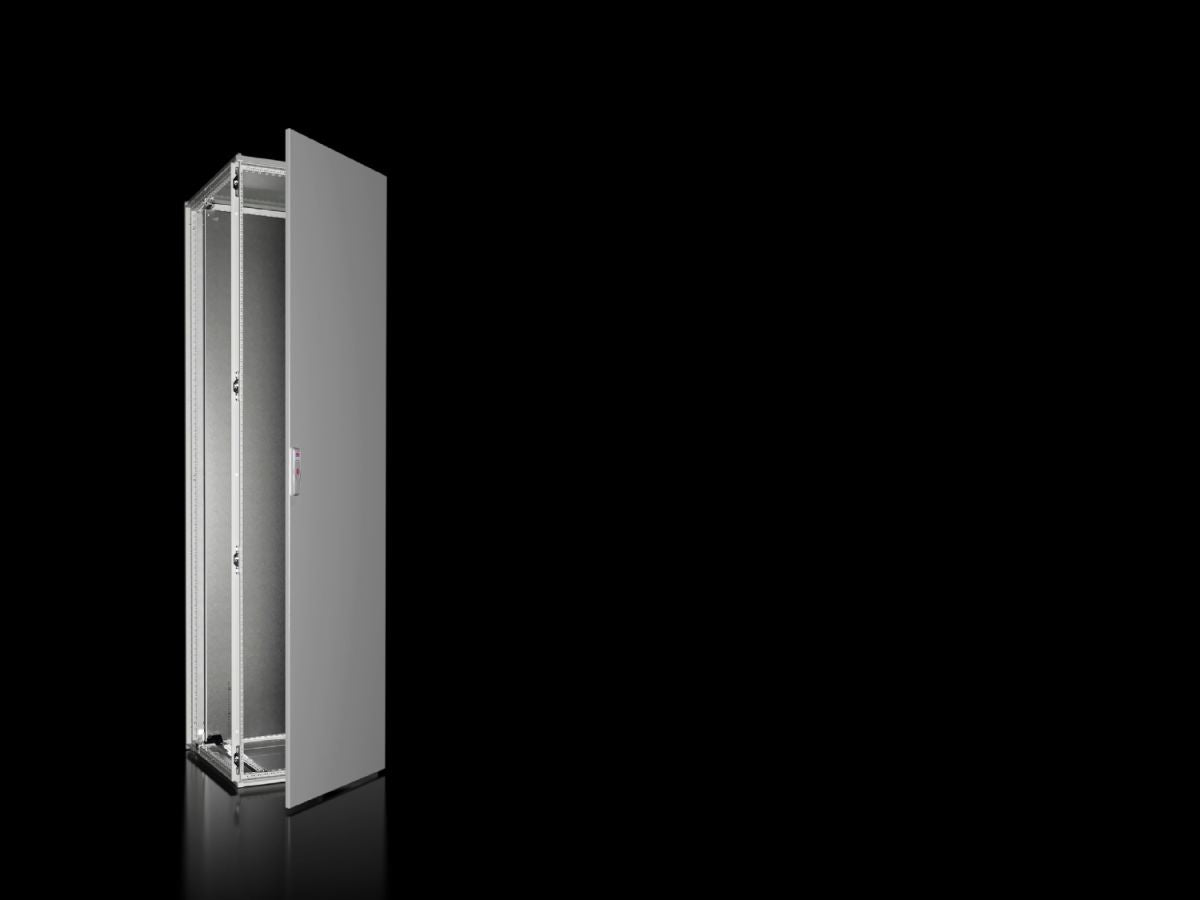

Rittal VX 8626.000, Bayed enclosure system VX25 Basic enclosure
Rittal VX 8626.000, Bayed enclosure system VX25 Basic enclosure
Regular price
€751,04
Regular price
Sale price
€751,04
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:VX 8626.000
The standard in enclosure manufacturing: Enclosure frame with one front door, rear panel, mounting plate, roof plate, divided gland plates. Perfectly suited to efficient enclosure interior installation.
| Article number: | VX 8626.000 |
| Material | Enclosure frame: Sheet steel, 1.5 mmRoof: Sheet steel, 1.5 mmDoor: Sheet steel, 2.0 mmRear panel: Sheet steel, 1.5 mmGland plates: Sheet steel, 1.5 mmMounting plate: Sheet steel, 3.0 mm |
| Surface finish | Enclosure frame: Dipcoat-primedDoor, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paintMounting plate and gland plates: Zinc-plated |
| Colour | RAL 7035 |
| Supply includes | Enclosure frameDoor(s)Door hinged on the right, may be swapped to the leftRoof plateRear panelGland platesMounting plate2 punched rails 18 x 39 mmLock: 3 mm double-bit |
| Dimensions | Width: 600 mmHeight: 2,200 mmDepth: 600 mm |
| Dimensions mounting plate (W x H) | 499 mm x 2,096 mm |
| Protection category to IEC 60 529 | IP 55 |
| Protection category NEMA | NEMA 1 |
| Type rating to UL 50E | Type 1 |
| IK Code | IK10 |
| Number of doors | 1 |
| Basic material | Sheet steel |
| Packs of | 1 pc(s). |
| Net weight | 102.29 kg |
| Gross weight | 106 kg |
| PCF per pack (cradle-to-gate) | 261.2 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| EAN | 4028177813762 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | VX Baying enclosure system, WHD: 600x2200x600 mm, sheet steel, with mounting plate, single door at the front |
