Rittal

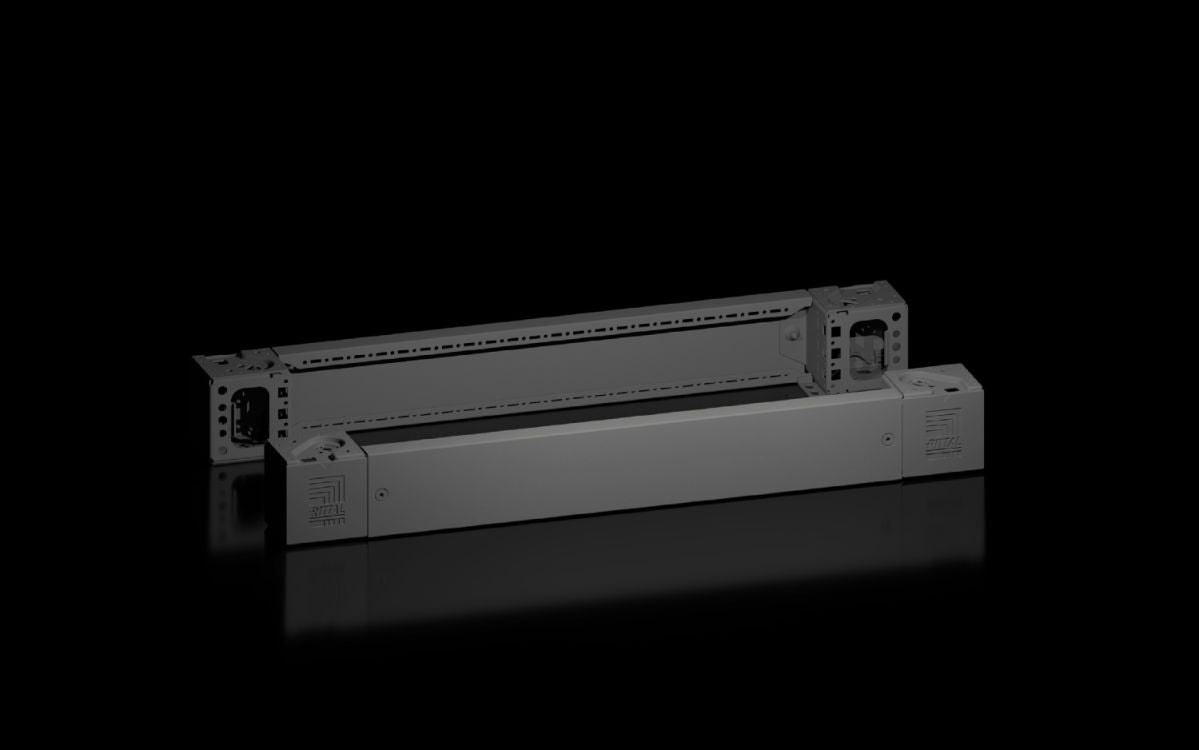

Rittal VX 8660.003, Base/plinth corner pieces with base/plinth trim panels, front and rear for base/plinth system VX, sheet steel
Rittal VX 8660.003, Base/plinth corner pieces with base/plinth trim panels, front and rear for base/plinth system VX, sheet steel
Regular price
€56,47
Regular price
Sale price
€56,47
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:VX 8660.003
Base/plinth corner pieces with trim panels for flexible cable entry.
| Article number: | VX 8660.003 |
| Benefits | Reliable – Excellent stability of the base/plinth |
| Material | Base/plinth corner piece: Sheet steelBase/plinth trim panel front/rear: Sheet steelCorner and baying cover: Plastic |
| Colour | RAL 9005 |
| Supply includes | 4 corner coversAssembly parts4 base/plinth corner pieces, 100 mm high2 base/plinth trim panels, front/rear, 100 mm high |
| Note | Side base/plinth trim panels finish off a base/plinth unit or provide additional stabilisation between base/plinths or enable interior configuration of the base/plinth |
| Dimensions | Height: 100 mm |
| To fit | Enclosure type: VXVX ITVX SETX CableNetTSTS ITTPPCIWCXWidth: = 800 mm |
| Type rating to UL 50E | Type 1 |
| Weight/pack | 5.42 kg |
| Packs of | 2 pc(s). |
| Net weight | 5.2 kg |
| Gross weight | 5.218 kg |
| PCF per pack (cradle-to-gate) | 20.7 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 94039910 |
| EAN | 4028177978058 |
| ETIM 9 | EC000721 |
| ETIM 8 | EC000721 |
| ECLASS 8.0 | 27182003 |
| Product description | VX base/plinth corner piece with trim panel, front and rear, H: 100 mm, for W: 800 mm, sheet steel |
