Rittal

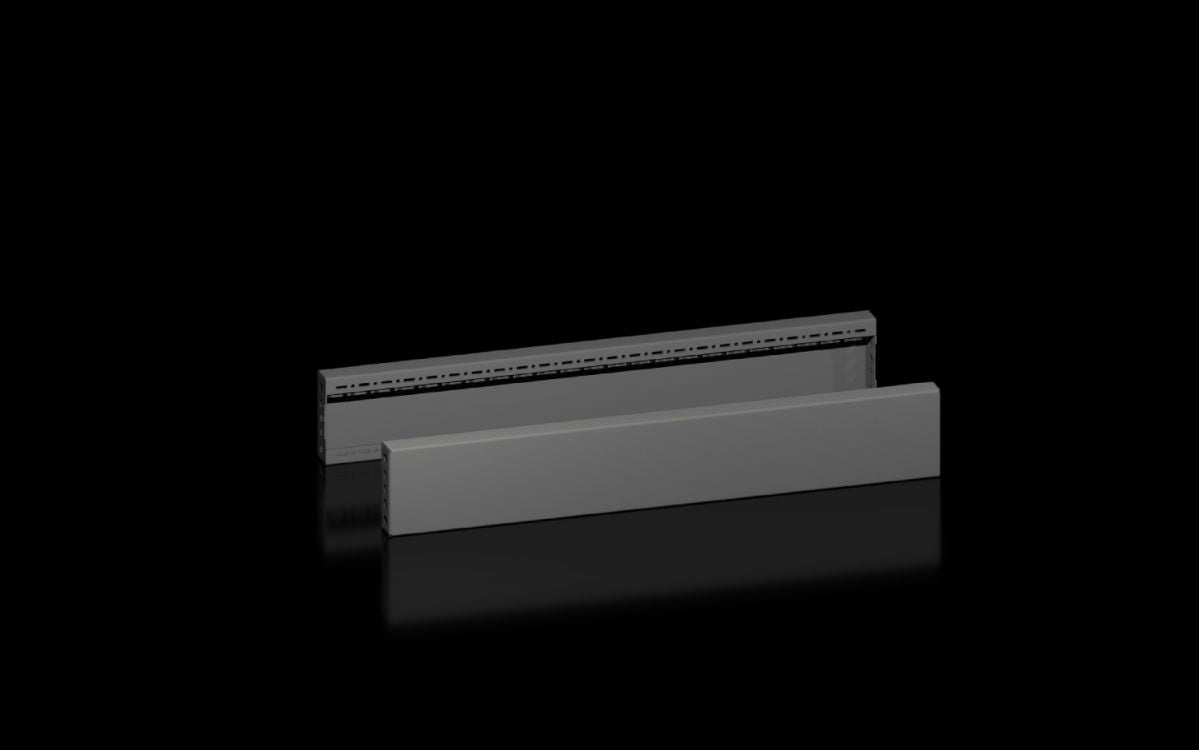

Rittal VX 8660.034, Base/plinth trim panels, side for base/plinth system VX, sheet steel
Rittal VX 8660.034, Base/plinth trim panels, side for base/plinth system VX, sheet steel
Regular price
€48,47
Regular price
Sale price
€48,47
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:VX 8660.034
To finish off a base/plinth unit at the sides and for additional stability or interior configuration of bayed base/plinths. One 200 mm high or two 100 mm high trim panels may optionally be fitted on 200 mm high base/plinths.
| Article number: | VX 8660.034 |
| Design | Solid |
| Material | Sheet steel |
| Colour | RAL 9005 |
| Supply includes | Assembly parts |
| Dimensions | Height: 100 mm |
| To fit | Enclosure type: VXVX ITVX SETX CableNetTSTS ITTPPCIWCXDepth: = 800 mm |
| Type rating to UL 50E | Type 1 |
| Weight/pack | 2.82 kg |
| Packs of | 2 pc(s). |
| To fit | for base/plinth system VX, sheet steel |
| Net weight | 2.14 kg |
| Gross weight | 2.816 kg |
| PCF per pack (cradle-to-gate) | 10.7 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 94039910 |
| EAN | 4028177978249 |
| ETIM 9 | EC000721 |
| ETIM 8 | EC000721 |
| ECLASS 8.0 | 27182003 |
| Product description | VX base/plinth trim panel, side, H: 100 mm, for D: 800 mm, sheet steel |
