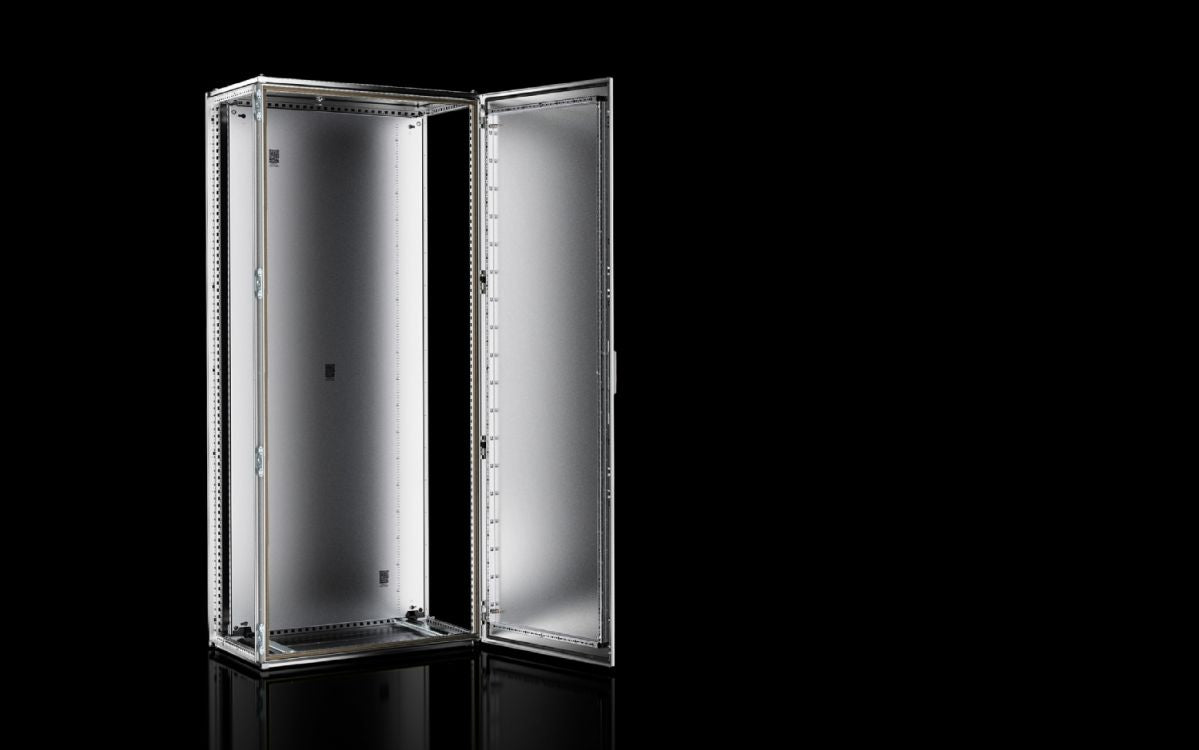

Rittal VX 8807.020, Bayed enclosure system VX25 EMC
Rittal VX 8807.020, Bayed enclosure system VX25 EMC
Regular price
€1.386,95
Regular price
Sale price
€1.386,95
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 05.01.2026
Couldn't load pickup availability
SKU: SKU:VX 8807.020
The large enclosures in the VX25 series offer a good level of shielding across a broad frequency range, even in the standard version. For increased EMC requirements, Rittal's VX25 enclosure is also available in a high RF attenuation version.
| Article number: | VX 8807.020 |
| Design | EMC version |
| Product description | The large enclosures in the VX25 series offer a good level of shielding across a broad frequency range, even in the standard version. For increased EMC requirements, Rittal’s VX25 enclosure is also available in a high RF attenuation version. |
| Material | Enclosure frame: Sheet steel with zinc magnesium coating, 1.5 mmRoof: Sheet steel with zinc magnesium coating, 1.5 mmDoor: Sheet steel with zinc magnesium coating, 2.0 mmRear panel: Sheet steel with zinc magnesium coating, 1.5 mmGland plates: Sheet steel, 1.5 mmMounting plate: Sheet steel, 3.0 mm |
| Surface finish | Enclosure frame: UncoatedDoor, rear panel and roof: Spray-finished on the outside and paint-free on the insideGland plates: Zinc-platedMounting plate: Zinc-plated |
| Colour | RAL 7035 |
| Supply includes | Enclosure frameDoor(s)Door hinged on the right, may be swapped to the leftRear panelRoof plateGland platesMounting plateLock: 3 mm double-bit2 punched rails 18 x 39 mm |
| Protection category to IEC 60 529 | IP 55 |
| Protection category NEMA | NEMA 1 |
| Type rating to UL 50E | Type 1 |
| Dimensions | Width: 800 mmHeight: 2,000 mmDepth: 800 mm |
| Number of doors | 1 |
| Note | For bayed enclosures, the EMC shielding seal is required |
| Packs of | 1 pc(s). |
| Net weight | 121 kg |
| Gross weight | 135 kg |
| PCF per pack (cradle-to-gate) | 332.6 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| EAN | 4028177924468 |
| ETIM 9 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | VX Baying enclosure system, WHD: 800x2000x800 mm, Sheet steel, EMC version, with mounting plate, single door at the front |
