Rittal

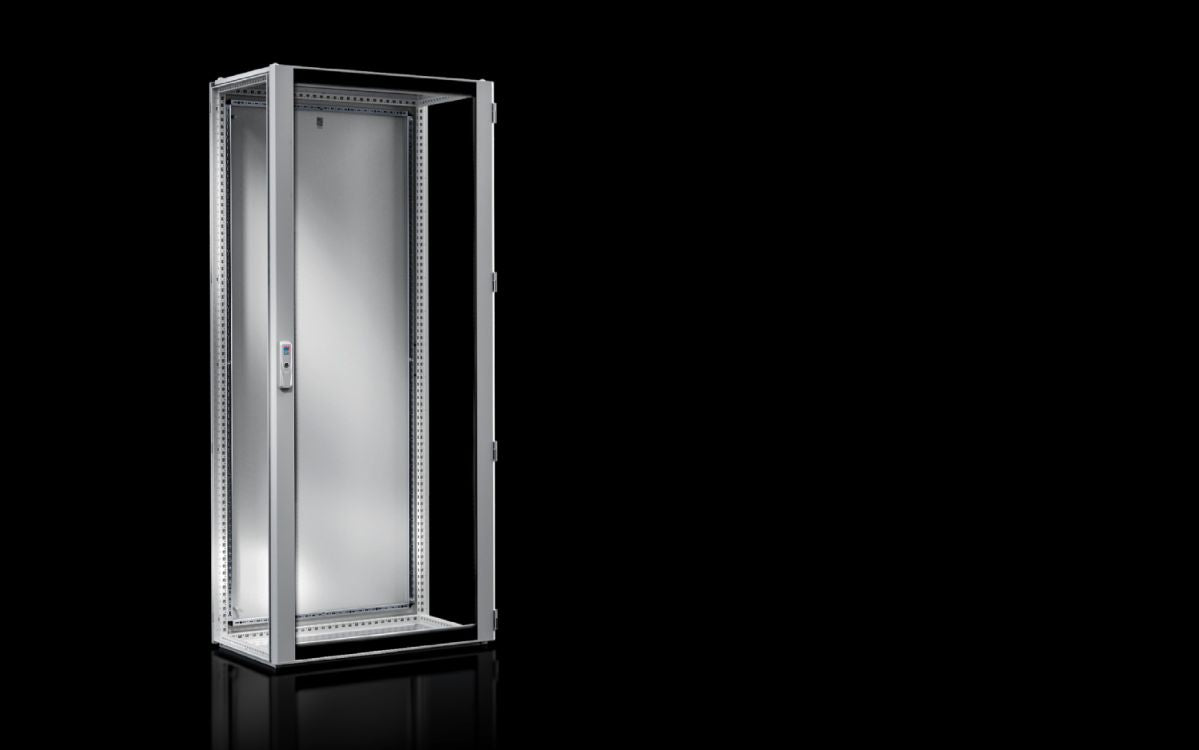

Rittal VX 8840.110, Bayed enclosure system VX25 Basic enclosure with glazed door
Rittal VX 8840.110, Bayed enclosure system VX25 Basic enclosure with glazed door
Regular price
€1.053,60
Regular price
Sale price
€1.053,60
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 05.01.2026
Couldn't load pickup availability
SKU: SKU:VX 8840.110
The VX basic enclosure with glazed door for industrial applications: Enclosure frame with glazed door at the front, rear door, roof plate, divided gland plates. Perfectly suited to efficient enclosure interior installation.
| Article number: | VX 8840.110 |
| Material | Enclosure frame: Sheet steel, 1.5 mmRoof: Sheet steel, 1.5 mmGlazed door: Single-pane safety glass, 3 mmRear door: Sheet steel, 2.0 mmGland plates: Sheet steel, 1.5 mm |
| Surface finish | Enclosure frame: Dipcoat-primedDoor, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint |
| Colour | RAL 7035 |
| Supply includes | Enclosure frameGlazed aluminium door at the front (180°)Sheet steel door at the rear (130°)Lock front and rear: 3 mm double-bitRoof plateGland plate |
| Dimensions | Width: 800 mmHeight: 2,000 mmDepth: 800 mm |
| Protection category to IEC 60 529 | IP 55 |
| Protection category NEMA | NEMA 1 |
| Type rating to UL 50E | Type 1 |
| IK Code | IK08 |
| Basic material | Sheet steel |
| Packs of | 1 pc(s). |
| Net weight | 87 kg |
| Gross weight | 90 kg |
| PCF per pack (cradle-to-gate) | 221.7 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| EAN | 4028177951358 |
| ETIM 9 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | VX Baying enclosure system, WHD: 800x2000x800 mm, sheet steel, without mounting plate, glazed door at the front |
