Rittal

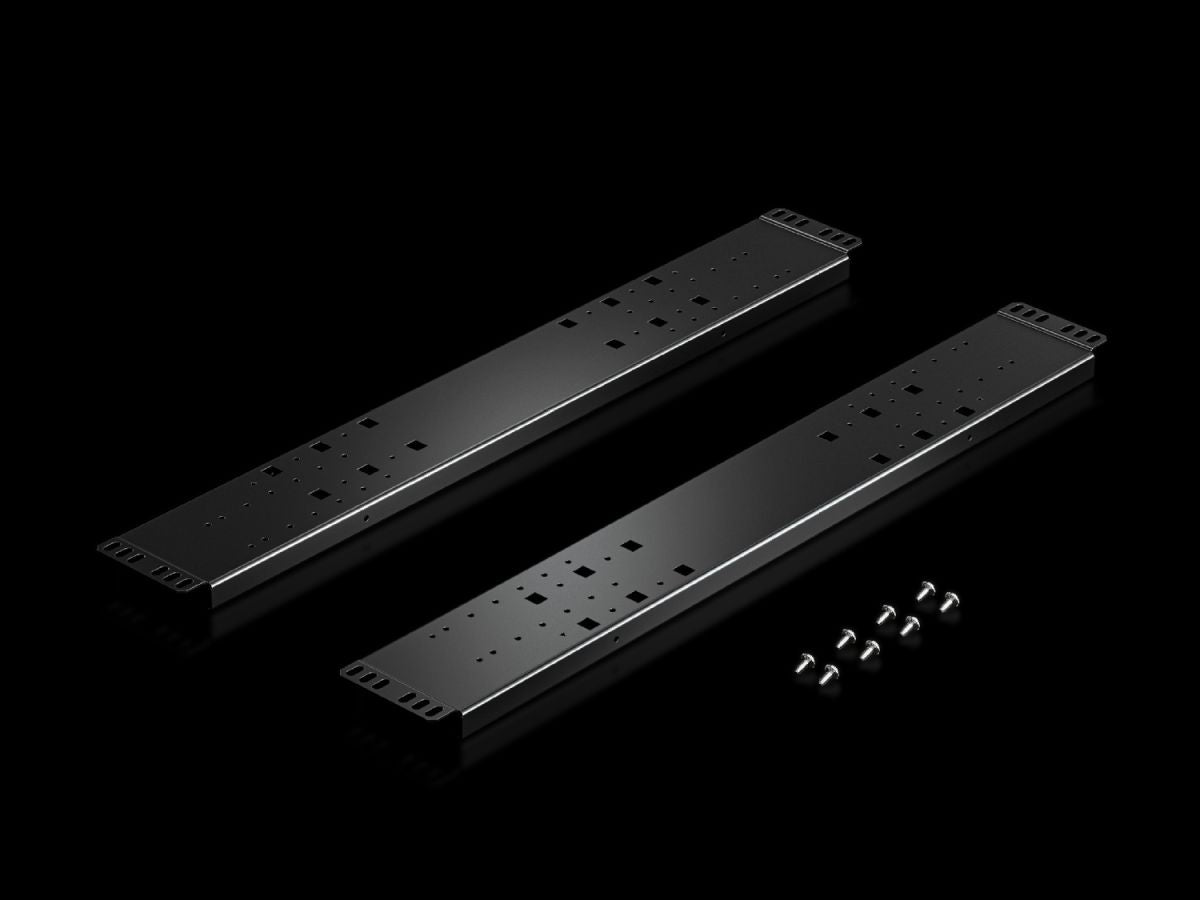

Rittal VX_IT 5302.168, Cross-member for VX IT 482.6 mm (19") mounting angles
Rittal VX_IT 5302.168, Cross-member for VX IT 482.6 mm (19") mounting angles
Regular price
€129,73
Regular price
Sale price
€129,73
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 25.10.2025
Couldn't load pickup availability
SKU: SKU:VX_IT 5302.168
For depth- and width-variable mounting of dynamic 482.6 mm (19") mounting angles in the bottom of 800 mm wide VX IT network/server enclosures.
| Article number: | VX_IT 5302.168 |
| Design | for VX IT 482.6 mm (19") mounting angles, dynamic |
| Product description | For width-variable mounting of standard 482.6 mm (19") mounting angles in 800 mm wide VX IT network/server enclosures. |
| Benefits | Symmetrical or asymmetrical installation supported |
| Material | Sheet steel |
| Surface finish | Spray-finished |
| Colour | RAL 9005 |
| Supply includes | Assembly parts |
| Load capacity | The maximum load capacity of one mounting level on this cross-member is 7,500 N per mounting level or 15,000 N per enclosure. |
| Assembly instruction | It is attached directly onto the enclosure frame. Only for use on the underside of the mounting angles. |
| To fit | Enclosure type: VX ITWidth: = 800 mm |
| Packs of | 2 pc(s). |
| Net weight | 6.1 kg |
| Gross weight | 6.3 kg |
| PCF per pack (cradle-to-gate) | 13.3 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177970847 |
| ETIM 9 | EC002620 |
| ECLASS 8.0 | 27189261 |
| Product description | VX IT cross-member for 19" mounting angles, dynamic, for depth- and width-variable mounting of 482.6 mm (19") mounting angles, dynamic, in the bottom of 800 mm wide VX IT network/server enclosures. |
