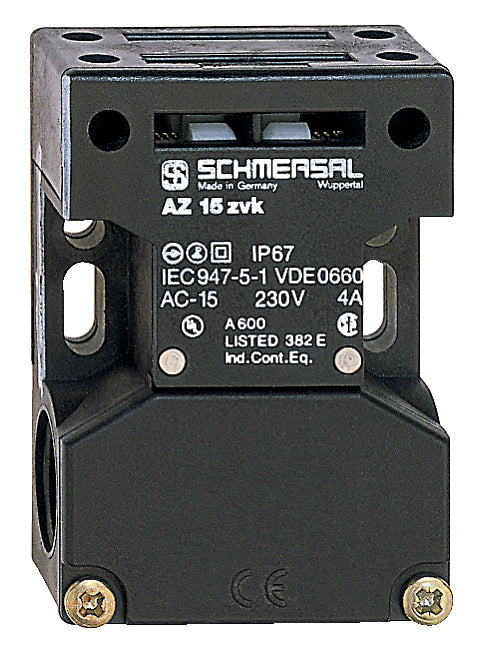

Schmersal AZ 15 ZVK-M20 Sicherheitsschalter mit separatem Betätiger

Schmersal AZ 15 ZVK-M20 Sicherheitsschalter mit separatem Betätiger

€51,49
€51,49
Sale Sold out
Taxes included.

📦 Ready for dispatch: 04.12.2025

SKU: 101157375

  • 3 Leitungseinführungen M 20 x 1.5
  • Kunststoffgehäuse
  • schutzisoliert
  • hohe Lebensdauer
  • 52 mm x 75 mm x 30 mm
  • Universelle Codierung
  • großer Anschlussraum
  • hohe Kontaktsicherheit bei niedrigen Strömen
  • Langlöcher zum Einstellen, Rundlöcher zum Fixieren
  • unempfindlich gegen Verschmutzung
  • Product type description: AZ 15 ZVK-M20
  • Article number (order number): 101157375
  • EAN (European Article Number): 4030661180052
  • eCl@ss number, version 12.0: 27-27-26-02
  • eCl@ss number, version 11.0: 27-27-26-02
  • eCl@ss number, version 9.0: 27-27-26-02
  • ETIM number, version 7.0: EC002592
  • ETIM number, version 6.0: EC002592
  • Certificates: TÜV, cULus, CCC
  • Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
  • Coding level according to EN ISO 14119: Low
  • Working principle: electromechanical
  • Enclosure material: Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
  • Gross weight: 100 g
  • Ejection force: Yes
  • Suitable for elevators: Yes
  • Number of cable glands: 3
  • Number of safety contacts: 1
  • Safety classification: 1
  • Standards: EN ISO 13849-1
  • Mission time: 20 Year(s)
  • B10D Normally-closed contact (NC): 2,000,000 Operations
  • Mechanical life, minimum: 1,000,000 Operations
  • Positive break travel: 8 mm
  • Positive break force per NC contact, minimum: 10 N
  • Positive break force, minimum: 10 N
  • Actuating speed, maximum: 2 m/s
  • Mounting: Screws
  • Type of the fixing screws: 2x M6
  • Termination: Screw terminals
  • Cable entry: 3 x M20 x 1,5
  • Cable section, minimum: 0.25 mm²
  • Cable section, maximum: 2.5 mm²
  • Note (Cable section): All indications including the conductor ferrules.
  • Allowed type of cable: solid single-wire, solid multi-wire, flexible
  • Length of sensor: 30 mm
  • Width of sensor: 52 mm
  • Height of sensor: 75 mm
  • Degree of protection: IP67
  • Ambient temperature: -30 ... +80 °C
  • Storage and transport temperature, minimum: -40 °C
  • Storage and transport temperature, maximum: +85 °C
  • Permissible installation altitude above sea level, maximum: 2,000 m
  • Rated insulation voltage Ui: 500 V
  • Rated impulse withstand voltage Uimp: 6 kV
  • Overvoltage category: III
  • Degree of pollution: 3
  • Thermal test current: 10 A
  • Required rated short-circuit current: 1,000 A
  • Switching element: Opener (NC)
  • Switching principle: slow action, positive break NC contact
  • Switching frequency: 4,000 /h
  • Material of the contacts, electrical: Silver
  • Voltage, Utilisation category AC-15: 230 VAC
  • Current, Utilisation category AC-15: 4 A
  • Voltage, Utilisation category DC-13: 24 VDC
  • Current, Utilisation category DC-13: 4 A
  • Scope of delivery: Actuator must be ordered separately.
