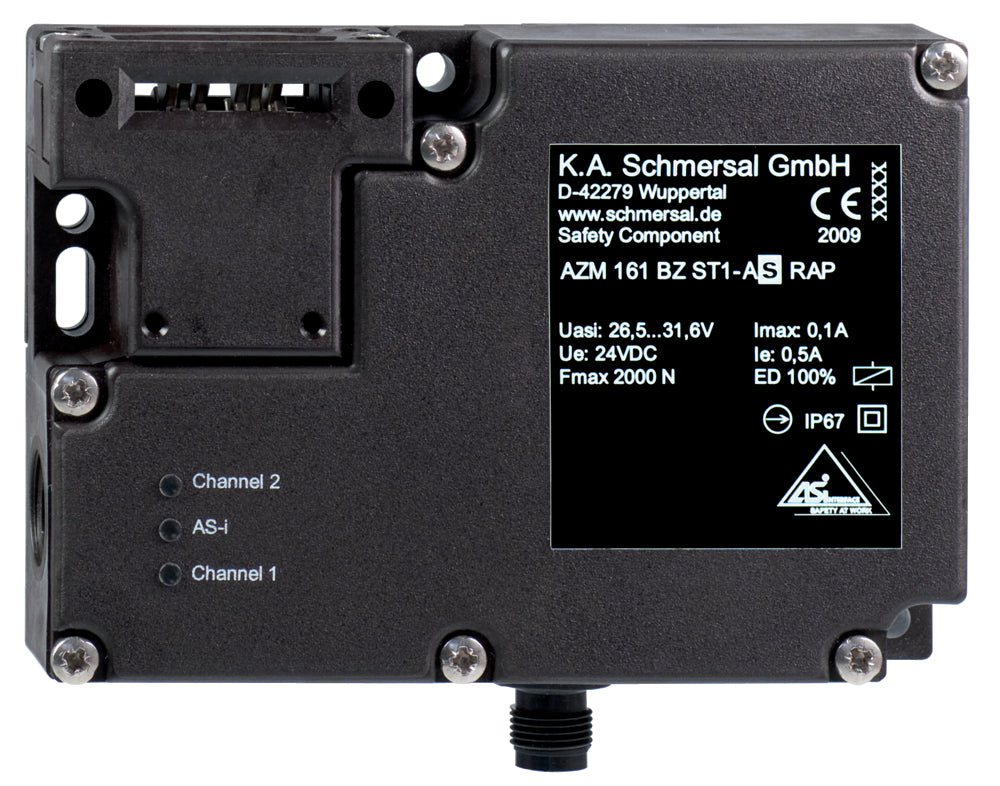

Schmersal AZM 161 B ST1-AS RAP AS-Interface Safety at Work, sku: 101209090

Schmersal AZM 161 B ST1-AS RAP AS-Interface Safety at Work, sku: 101209090

€469,97
€469,97
Sale Sold out
Taxes included.

📦 Ready for dispatch: 30.11.2025

SKU: 101209090

  • Magnetversorgung 24 VDC (Aux)
  • Betätiger-Überwachung
  • Hilfsentriegelung
  • Sicherheitszuhaltung
  • Kunststoffgehäuse
  • hohe Zuhaltekraft 2000 N
  • 130 mm x 90 mm x 30 mm
  • Fehlschließsichere Zuhaltung
  • schutzisoliert
  • hohe Lebensdauer
  • Integrierte AS-Interface Schnittstelle
  • Product type description: AZM 161 B ST1-AS RAP
  • Article number (order number): 101209090
  • EAN (European Article Number): 4030661396439
  • eCl@ss number, version 12.0: 27-27-26-03
  • eCl@ss number, version 11.0: 27-27-26-03
  • eCl@ss number, version 9.0: 27-27-26-03
  • ETIM number, version 7.0: EC002593
  • ETIM number, version 6.0: EC002593
  • Certificates: TÜV, cULus, ASi-SaW
  • Standards: EN IEC 62026-2, EN ISO 13849-1, EN IEC 60947-5-1, EN IEC 61508
  • Coding level according to EN ISO 14119: Low
  • Working principle: electromechanical
  • Housing material: Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
  • Reaction time, maximum: 100 ms
  • Gross weight: 450 g
  • Power to lock: Yes
  • Actuator monitored: Yes
  • Manual release: Yes
  • Integral system diagnostics, status: Yes
  • Number of actuating directions: 3
  • Safety classification
  • Standards: EN ISO 13849-1, EN IEC 61508
  • Performance Level, up to: c
  • Category: 1
  • PFH value: 1.14 x 10⁻⁶ /h
  • Note (PFH-value): up to max. 100,000 switching cycles/year
  • Safety Integrity Level (SIL), suitable for applications in: 1
  • Mission time: 20 Year(s)
  • Safety classification - Fault exclusion
  • Please note:: Can be used when fault exclusion for dangerous damage to the 1-channel mechanism is permissible and sufficient protection against manipulation is guaranteed.
  • Performance Level, up to: d
  • Category: 3
  • PFH value: 1.01 x 10⁻⁷ /h
  • Note (PFH-value): up to max. 100,000 switching cycles/year
  • Safety Integrity Level (SIL), suitable for applications in: 2
  • Mission time: 20 Year(s)
  • Mechanical life, minimum: 1,000,000 Operations
  • Actuating play in direction of actuation: 5.5 mm
  • Holding force FZhin accordance with EN ISO 14119: 2,000 N
  • Holding force Fmax, maximum: 2,600 N
  • Latching force: 30 N
  • Actuating speed, maximum: 2 m/s
  • Mounting: Screws
  • Type of the fixing screws: 3x M6
  • Connector position : Centre
  • Termination: Connector plug M12, 4-pole, (A-coding)
  • Length of sensor: 30 mm
  • Width of sensor: 130 mm
  • Height of sensor: 90 mm
  • Degree of protection: IP67
  • Ambient temperature: -25 ... +60 °C
  • Storage and transport temperature: -25 ... +85 °C
  • Relative humidity, minimum: 30 %
  • Relative humidity, maximum: 95 %
  • Note (Relative humidity): non-condensing, non-icing
  • Resistance to vibrations: 10 Hz ... 150 Hz, amplitude 0.35 mm
  • Restistance to shock: 30 g / 11 ms
  • Protection class: II
  • Permissible installation altitude above sea level, maximum: 2,000 m
  • Rated insulation voltage Ui: 32 VDC
  • Rated impulse withstand voltage Uimp: 0.8 kV
  • Overvoltage category: III
  • Degree of pollution: 3
  • Maximum switching frequency: 1,000 /h
  • Rated operating voltage: 26.5 ... 31.6 VDC (Protection against polarity reversal)
  • AS-i Current consumption, maximum: 100 mA
  • AS-i Specification: Safety-Slave
  • AS-i Version : V 2.1
  • AS-i Profile : S-7.B.F.E
  • AS-i, IO-Code: 0x7
  • AS-i, ID-Code: 0xB
  • AS-i, ID-Code1: 0xF
  • AS-i, ID-Code2: 0xE
  • AS-i Input, Channel 1: Data bits DI 0 / DI 1 = dynamic code transmission
  • AS-i Input, Channel 2: Data bits DI 2 / DI 3 = dynamic code transmission
  • AS-i Outputs, DO 0: Solenoid control
  • AS-i Outputs, DO 1: No Function
  • AS-i Outputs, DO 2: No Function
  • AS-i Outputs, DO 3: No Function
  • AS-i Parameter bits, P0: Actuator detected
  • AS-i Parameter bits, P1: Solenoid interlock locked
  • AS-i Parameter bits, P2: Magnet voltage in tolerance range
  • AS-i Parameter bits, P3: Error message - locking/unlocking of the solenoid interlock blocked
  • Note (AS-i Parameter bits): Set the parameter outputs to "1111" (0xF) , FID: periphery error
  • AS-i Input module address: 0
  • Note (AS-i Input module address): Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
  • Operating voltage: 24 VDC -15 % / +10 % (stabilised PELV power supply)
  • Current consumption: 500 mA
  • Rated operating voltage: 24 VDC
  • Note (LED switching conditions display): (1) LED yellow: Channel 2 / AS-i SaW Bit 2.3, (2) LED green/red (AS-i duo LED): Supply voltage / communication error / slave address = 0 / periphery error detected, (3) LED yellow: Channel 1 / AS-i SaW Bit 0.1
  • Note (applications): sliding safety guard, removable guard, hinged safety guard
  • PIN 1: AS-i +
  • PIN 2: Aux - (P)
  • PIN 3: AS-Interface -
  • PIN 4: Aux + (P)
  • Scope of delivery: Actuator must be ordered separately.
  • Note (General): Interlocks with the power to lock principle may only be used in special cases after a thorough evaluation of the accident risk, since the guarding device can immediately be opened on failure of the electrical power supply or when the main switch is opened.
  • Note (Manual release): For maintenance, installation, etc. , For manual release using M5 triangular key, available as accessory
  • Note voltage AUX DC: stabilised PELV power supply
