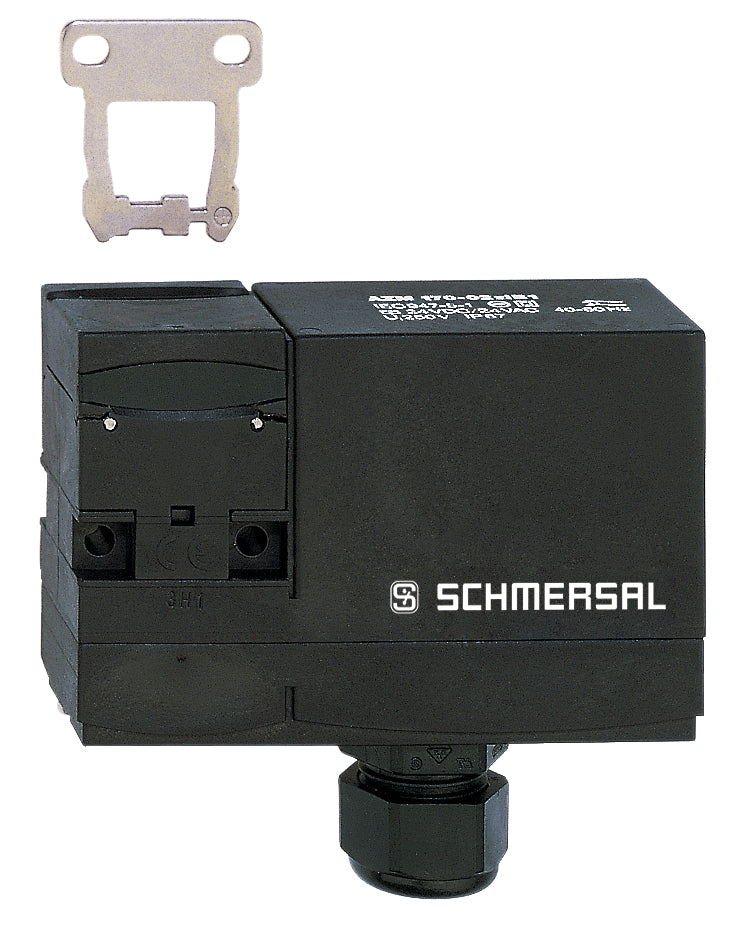

Schmersal AZM 170-11ZRI-B5 24VAC/DC Sicherheitszuhaltungen, sku: 101140801

Schmersal AZM 170-11ZRI-B5 24VAC/DC Sicherheitszuhaltungen, sku: 101140801

€349,07
€349,07
Sale Sold out
Taxes included.

📦 Ready for dispatch: 27.12.2025

SKU: 101140801

  • 1 Leitungseinführung M 20 x 1.5
  • Schneidklemmtechnik
  • Hilfsentriegelung
  • schutzisoliert
  • Individuelle Codierung
  • Codierstufe HOCH gemäß ISO 14119
  • 90 mm x 84 mm x 30 mm
  • kompakte Bauform
  • Fehlschließsichere Zuhaltung
  • hohe Lebensdauer
  • hohe Zuhaltekraft
  • besonders geeignet für die frontseitige Montage
  • Product type description: AZM 170-11ZRI-B5 24VAC/DC
  • Article number (order number): 101140801
  • EAN (European Article Number): 4030661119892
  • eCl@ss number, version 12.0: 27-27-26-03
  • eCl@ss number, version 11.0: 27-27-26-03
  • eCl@ss number, version 9.0: 27-27-26-03
  • ETIM number, version 7.0: EC002593
  • ETIM number, version 6.0: EC002593
  • Certificates: BG, cULus, CCC
  • Standards: BG-GS-ET-19, EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
  • Coding: Individual coding
  • Coding level according to EN ISO 14119: High
  • Working principle: electromechanical
  • Enclosure material: Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
  • Material of the actuator: Stainless steel
  • Gross weight: 295 g
  • Power to unlock: Yes
  • Manual release: Yes
  • Number of actuating directions: 2
  • Number of auxiliary contacts: 1
  • Number of safety contacts: 1
  • Safety classification: 1
  • Standards: EN ISO 13849-1
  • Mission time: 20 Year(s)
  • B10D Normally-closed contact (NC): 2,000,000 Operations
  • Actuating radius, minimum: 140 mm
  • Mechanical life, minimum: 1,000,000 Operations
  • Holding force FZh in accordance with EN ISO 14119: 1,000 N
  • Holding force Fmax, maximum: 1,300 N
  • Latching force: 30 N
  • Positive break travel: 11 mm
  • Positive break force per NC contact, minimum: 8.5 N
  • Positive break force, minimum: 8.5 N
  • Actuating speed, maximum: 2 m/s
  • Termination: IDC method of termination
  • Cable section, minimum: 0.75 mm²
  • Cable section, maximum: 1 mm²
  • Allowed type of cable: flexible
  • Length of sensor: 30 mm
  • Width of sensor: 90 mm
  • Height of sensor: 84 mm
  • Degree of protection: IP67
  • Ambient temperature: -25 ... +60 °C
  • Storage and transport temperature, minimum: -25 °C
  • Storage and transport temperature, maximum: +85 °C
  • Rated insulation voltage Ui: 250 VAC
  • Rated impulse withstand voltage Uimp: 4 kV
  • Thermal test current: 6 A
  • Rated control voltage: 24 VAC/DC
  • Required rated short-circuit current: 1,000 A
  • Electrical power consumption, maximum: 10 W
  • Switching element: NO contact, NC contact
  • Note (Switching element): Change-over contact with double break, type Zb or 2 NC or 3 NC or 4 NC contacts, with galvanically separated contact bridges
  • Switching principle: slow action, positive break NC contact
  • Switching frequency: 1,000 /h
  • Material of the contacts, electrical: Silver
  • Magnet switch-on time: 100 %
  • Test pulse duration, maximum: 5 ms
  • Test pulse interval, minimum: 50 ms
  • Voltage, Utilisation category AC-15: 230 VAC
  • Current, Utilisation category AC-15: 4 A
  • Voltage, Utilisation category DC-13: 24 VDC
  • Current, Utilisation category DC-13: 4 A
  • Voltage, Utilisation category AC-15: 230 VAC
  • Current, Utilisation category AC-15: 4 A
  • Voltage, Utilisation category DC-13: 24 VDC
  • Current, Utilisation category DC-13: 4 A
  • Note (applications): sliding safety guard, removable guard, hinged safety guard
  • Scope of delivery: Not available as spare part, Slot sealing plugs, The actuator is included in the scope of delivery
  • Note (General): This type termination (IDC) method enables simple connetion of flexible conductors without the need for the use of conductor ferrules
  • Note (Manual release): bottom, For manual release using M5 triangular key, available as accessory
