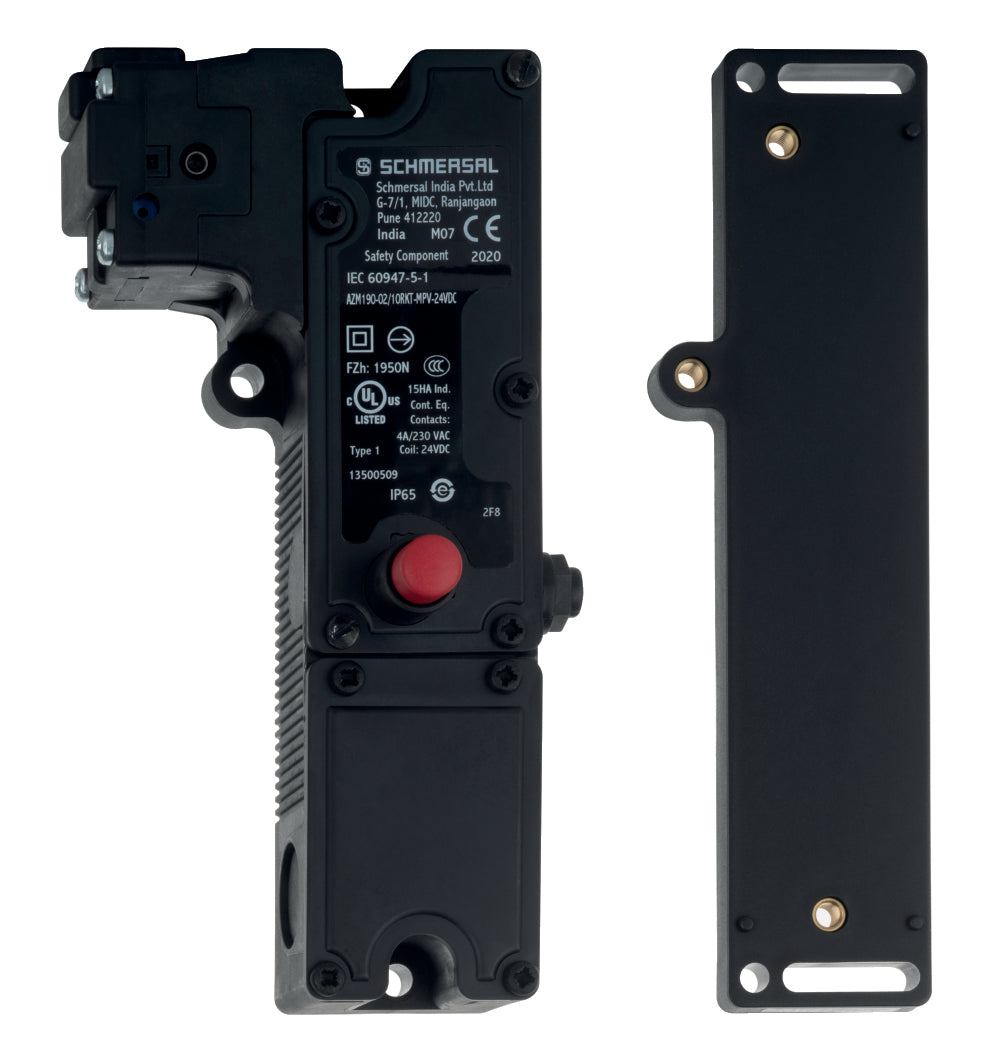

Schmersal AZM190-11/02RKT-MPV-24VDC Magnetverriegelung, sku: 133006268

Schmersal AZM190-11/02RKT-MPV-24VDC Magnetverriegelung, sku: 133006268

€507,26
€507,26
Sale Sold out
Taxes included.

📦 Ready for dispatch: 30.11.2025

SKU: 133006268

  • Kunststoffgehäuse
  • hohe Lebensdauer
  • Fehlschließsichere Zuhaltung
  • 89 mm x 178 mm x 41 mm
  • Anfahrkopf 4 x 90º drehbar
  • 2 Leitungseinführungen M 20 x 1.5
  • Anschlussraum
  • Schmale Bauform, besonders für die Anbringung an Drehtüren, Aluminiumprofilen und Umzäunungen geeignet
  • Verschlussmechanismus gegen das Eindringen von Schmutz
  • Schraubklemmenanschluss
  • Replacement article number: 103006268
  • Product type description: AZM190-11/02RKT-MPV-24VDC
  • Article number (order number): 133006268
  • EAN (European Article Number): 8905236101410
  • eCl@ss number, version 12.0: 27-27-26-03
  • eCl@ss number, version 11.0: 27-27-26-03
  • eCl@ss number, version 9.0: 27-27-26-03
  • ETIM number, version 7.0: EC002593
  • ETIM number, version 6.0: EC002593
  • Certificates: TÜV, cULus, CCC
  • Standards: BG-GS-ET-19, EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
  • Coding level according to EN ISO 14119: Low
  • Working principle: electromechanical
  • Enclosure material: Glass-fibre, reinforced thermoplastic
  • Gross weight: 400 g
  • Power to unlock: Yes
  • Number of actuating directions: 4
  • Number of auxiliary contacts: 1
  • Number of cable glands: 2
  • Number of safety contacts: 3
  • Safety classification: 3
  • Standards: EN ISO 13849-1
  • Mission time: 20 Year(s)
  • B10D Normally-closed contact (NC): 2,000,000 Operations
  • B10D Normally open contact (NO): 1,000,000 Operations
  • Mechanical life, minimum: 1,000,000 Operations
  • Holding force FZh in accordance with EN ISO 14119: 1,950 N
  • Holding force Fmax, maximum: 2,550 N
  • Latching force: 20 N
  • Positive break force, minimum: 20 N
  • Actuating speed, maximum: 0.3 m/s
  • Termination: Screw terminals
  • Cable entry: 2 x M20 x 1,5
  • Cable section, minimum: 0.5 mm²
  • Cable section, maximum: 1.5 mm²
  • Note (Cable section): All indications including the conductor ferrules.
  • Length of sensor: 41 mm
  • Width of sensor: 52 mm
  • Height of sensor: 178 mm
  • Degree of protection: IP65, IP67
  • Ambient temperature: +0 ... +50 °C
  • Rated insulation voltage Ui: 250 VAC
  • Rated impulse withstand voltage Uimp: 4 kV
  • Thermal test current: 4 A
  • Rated control voltage: 24 VDC
  • Required rated short-circuit current: 1,000 A
  • Electrical power consumption, maximum: 8.5 W
  • Switching element: NO contact, NC contact
  • Switching principle: slow action, positive break NC contact
  • Switching frequency: 1.2 /h
  • Material of the contacts, electrical: Silver
  • Magnet switch-on time: 100 %
  • Test pulse duration, maximum: 5 ms
  • Test pulse interval, minimum: 50 ms
  • Voltage, Utilisation category AC-15: 230 VAC
  • Current, Utilisation category AC-15: 4 A
  • Voltage, Utilisation category DC-13: 24 VDC
  • Current, Utilisation category DC-13: 4 A
  • Voltage, Utilisation category AC-15: 230 VAC
  • Current, Utilisation category AC-15: 4 A
  • Voltage, Utilisation category DC-13: 24 VDC
  • Current, Utilisation category DC-13: 4 A
  • Note (applications): sliding safety guard, removable guard, hinged safety guard
  • Scope of delivery: Actuator must be ordered separately.
  • Note (Emergency exit): For cases of danger, Mounting only within the guarded area
