Schmersal BDF200-FB-NH-LT-LT-LT-2875 Bedienfelder, sku: 103015447

Schmersal BDF200-FB-NH-LT-LT-LT-2875 Bedienfelder, sku: 103015447

€546,05
€546,05
Sale Sold out
Taxes included.

📦 Ready for dispatch: 30.11.2025

SKU: 103015447

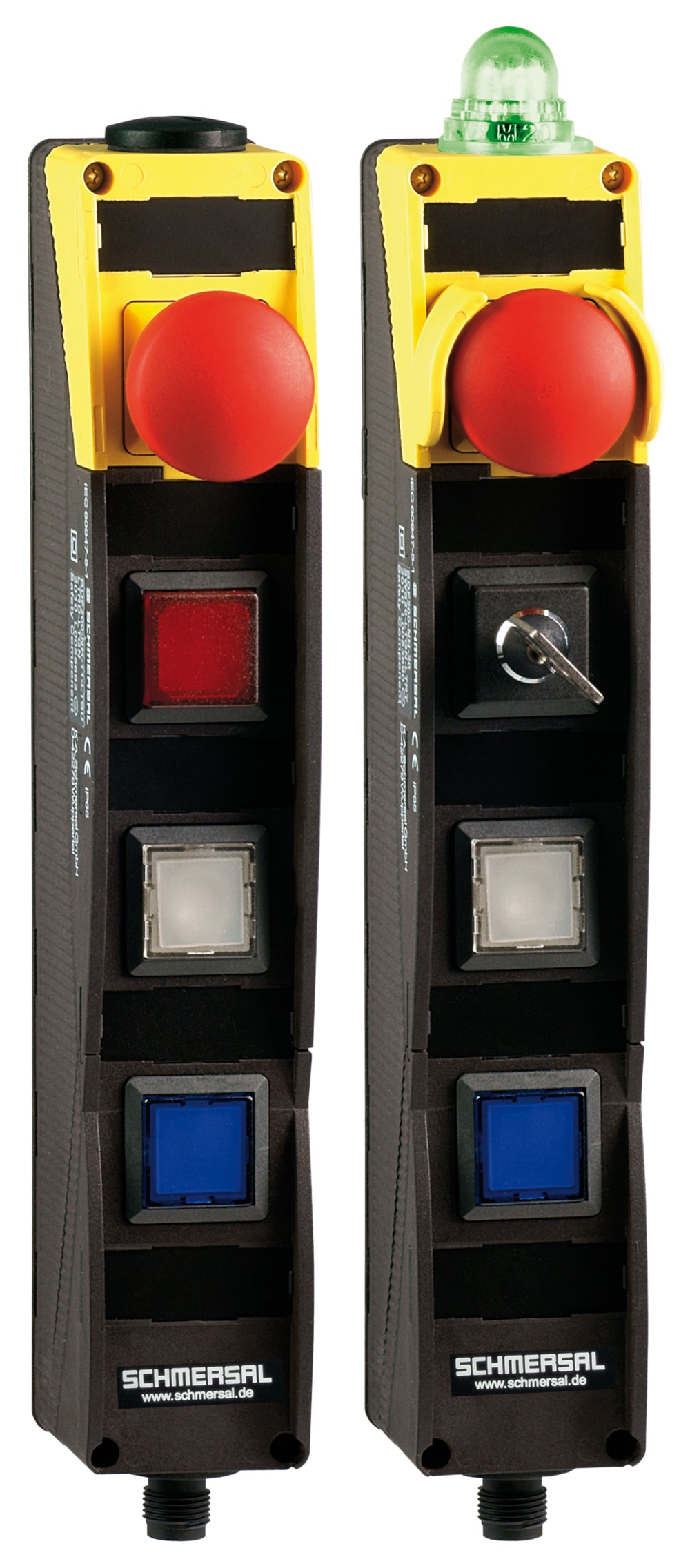

  • integriertes FB-Interface für den Anschluss an die Safety-Feld-Box SFB
  • Pos 1: NOT-HALT
  • Pos 2: Leuchtdrucktaster 2875 mit austauschbaren Farben
  • Pos 3: Leuchtdrucktaster 2875 mit austauschbaren Farben
  • Pos 4: Leuchtdrucktaster 2875 mit austauschbaren Farben
  • schlankes, schlagfestes Kunststoffgehäuse
  • an ergonomisch günstiger Position zu installieren
  • an handelsüblichen Alu-Profilsystemen zu befestigen
  • NOT-HALT mit elektronischen OSSDs
  • Product type description: BDF200-FB-NH-LT-LT-LT-2875
  • Article number (order number): 103015447
  • EAN (European Article Number): 4030661509648
  • eCl@ss number, version 12.0: 27-37-12-16
  • eCl@ss number, version 11.0: 27-37-12-16
  • eCl@ss number, version 9.0: 27-37-12-16
  • ETIM number, version 7.0: EC000225
  • ETIM number, version 6.0: EC000225
  • Certificates: TÜV, cULus
  • Standards: EN ISO 13849-1, EN ISO 13850, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 61508
  • Climatic stress: IEC 60947-5-5
  • Terminal (mechanical): Connector plug M12, 8-pole, A-coded
  • Enclosure material: Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
  • Gross weight: 280 g
  • Reaction time, maximum: 50 ms
  • Duration of risk, maximum: 100 ms
  • Positions used, position 1: Emergency stop pushbutton
  • Positions used, position 2: Illuminated pushbutton, color exchangeable
  • Positions used, position 3: Illuminated pushbutton; color exchangeable
  • Positions used, position 4: Illuminated pushbutton, color exchangeable
  • Serial diagnostics: No
  • Field box interface: Ja
  • Indicator lamp: No
  • Safety functions: Yes
  • Safety classification: Yes
  • Standards: EN ISO 13849-1, EN IEC 61508
  • Performance Level, up to: e
  • Category: 4
  • PFH value: 2.89 x 10⁻¹⁰ /h
  • Note (PFH-value): up to max. 5,000 switching cycles/year
  • Safety Integrity Level (SIL), suitable for applications in: 3
  • Mission time: 20 Year(s)
  • Mechanical life, Emergency-Stop button: 100,000 Operations
  • Mechanical life, Command devices: 1,000,000 Operations
  • Width: 40 mm
  • Height: 69 mm
  • Length x Width x Height: Depth: 233.5 - 252.5 mm (without and with indicator lamp)
  • Degree of protection: IP64
  • Ambient temperature: -25 ... +65 °C
  • Storage and transport temperature, minimum: -25 °C
  • Storage and transport temperature, maximum: +85 °C
  • Resistance to vibrations: 10 … 150 Hz, amplitude 0.35 mm / 5 g
  • Restistance to shock: 30 g / 11 ms
  • Protection class: III
  • Rated insulation voltage Ui: 32 VDC
  • Rated impulse withstand voltage Uimp: 0.8 kV
  • Overvoltage category: III
  • Degree of pollution: 3
  • Current consumption at 24V: 5 mA
  • No-load supply current I0, maximum: 35 mA
  • Rated operating voltage: 24 VDC
  • Operating current: 150 mA, 600 mA
  • Required rated short-circuit current: 100 A
  • Utilisation category DC-12: 24 VDC
  • Utilisation category DC-12: 0.25 A
  • Utilisation category DC-13: 24 VDC
  • Utilisation category DC-13: 0.25 A
  • Inputs, Switching thresholds: −3 V … 5 V (Low), 15 V … 30 V (High)
  • Rated operating current (safety outputs): 250 mA
  • Design of control elements: short-circuit proof, p-type
  • Voltage drop Ud, maximum: 1 V
  • Leakage current Ir, maximum: 0.5 mA
