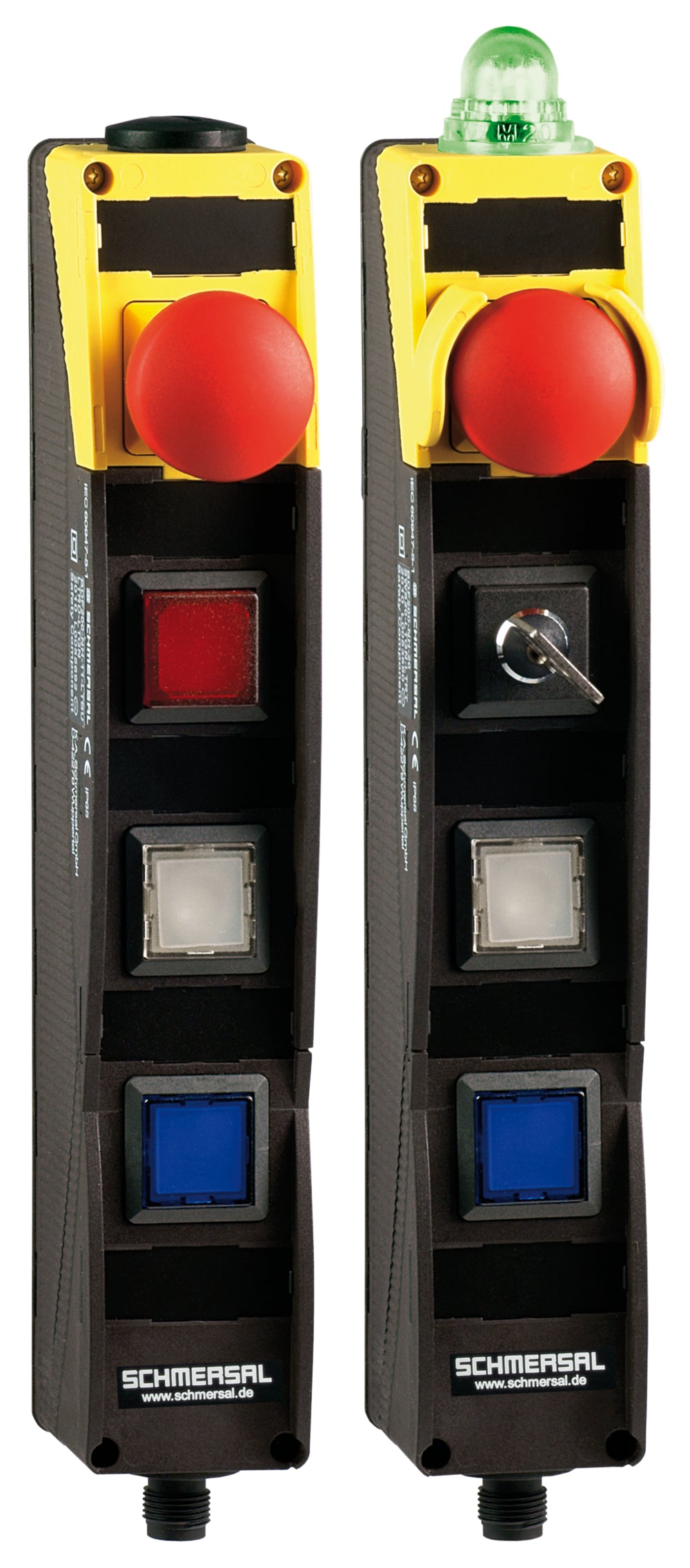

Schmersal BDF200-FB-NHK-LT-LT-LT-2875 Bedienfelder, sku: 103041351

Schmersal BDF200-FB-NHK-LT-LT-LT-2875 Bedienfelder, sku: 103041351

€546,05
€546,05
Sale Sold out
Taxes included.

📦 Ready for dispatch: 30.11.2025

SKU: 103041351

  • integriertes FB-Interface für den Anschluss an die Safety-Feld-Box SFB
  • Pos 1: NOT-HALT mit Schutzkragen
  • Pos 2: Leuchtdrucktaster 2875 mit austauschbaren Farben
  • Pos 3: Leuchtdrucktaster 2875 mit austauschbaren Farben
  • Pos 4: Leuchtdrucktaster 2875 mit austauschbaren Farben
  • schlankes, schlagfestes Kunststoffgehäuse
  • an ergonomisch günstiger Position zu installieren
  • an handelsüblichen Alu-Profilsystemen zu befestigen
  • NOT-HALT mit elektronischen OSSDs
  • Product type description: BDF200-FB-NHK-LT-LT-LT-2875
  • Article number (order number): 103041351
  • EAN (European Article Number): 4030661556628
  • eCl@ss number, version 12.0: 27-37-12-16
  • eCl@ss number, version 11.0: 27-37-12-16
  • eCl@ss number, version 9.0: 27-37-12-16
  • ETIM number, version 7.0: EC000225
  • ETIM number, version 6.0: EC000225
  • Note (Ordering data): Notice: see ordering code
  • Certificates: cULus
  • Standards: EN ISO 13849-1, EN ISO 13850, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 61508
  • Climatic stress: DIN EN 60068
  • Housing material: Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
  • Reaction time, maximum: 50 ms
  • Duration of risk, maximum: 100 ms
  • Positions used, position 1: Emergency stop, with protective collar
  • Positions used, position 2: Illuminated pushbutton, color exchangeable
  • Positions used, position 3: Illuminated pushbutton; color exchangeable
  • Positions used, position 4: Illuminated pushbutton, color exchangeable
  • Gross weight: 280 g
  • Serial diagnostics: No
  • Field box interface: Ja
  • Indicator lamp: No
  • Safety functions: Yes
  • Number of fail-safe digital outputs: 2
  • Safety classification
  • Standards: EN ISO 13849-1, EN IEC 61508
  • Performance Level, up to: e
  • Category: 4
  • PFH value: 2.89 x 10⁻¹⁰ /h
  • Note (PFH-value): up to max. 5,000 switching cycles/year
  • Safety Integrity Level (SIL), suitable for applications in: 3
  • Mission time: 20 Year(s)
  • Mechanical life, Emergency-Stop button: 100,000 Operations
  • Mechanical life, Command devices: 1,000,000 Operations
  • Mounting: interior mounting holes
  • Type of the fixing screws: 2x M5
  • Terminal (mechanical): Connector plug M12, 8-pole, A-coded
  • Width: 40 mm
  • Height: 69 mm
  • Depth: 220 mm
  • Length x Width x Height: Depth: 233.5 - 252.5 mm (without and with indicator lamp)
  • Degree of protection: IP65
  • Ambient temperature: -25 ... +65 °C
  • Storage and transport temperature: -25 ... +85 °C
  • Resistance to vibrations: 10 … 150 Hz, amplitude 0.35 mm / 5 g
  • Restistance to shock: 30 g / 11 ms
  • Protection class: III
  • Permissible installation altitude above sea level, maximum: 2,000 m
  • Rated insulation voltage Ui: 32 VDC
  • Rated impulse withstand voltage Uimp: 0.8 kV
  • Overvoltage category: III
  • Degree of pollution: 3
  • Operating voltage: 24 VDC -15 % / +10 % (stabilised PELV power supply)
  • No-load supply current I0, typical: 35 mA
  • Rated operating voltage: 24 VDC
  • Operating current: 600 mA
  • Required rated short-circuit current: 100 A
  • Time to readiness, maximum: 2,000 ms
  • Switching frequency, maximum: 1 Hz
  • Designation, Safety inputs: X1 and X2
  • Switching thresholds: −3 V … 5 V (Low), 15 V … 30 V (High)
  • Current consumption at 24 V: 5 mA
  • Test pulse duration, maximum: 1 ms
  • Test pulse interval, minimum: 100 ms
  • Classification ZVEI CB24I, Sink: C1
  • Classification ZVEI CB24I, Source: C1, C2, C3
  • Designation, Safety outputs: Y1 and Y2
  • Design of control elements: short-circuit proof, p-type
  • Voltage drop Ud, maximum: 1 V
  • Leakage current Ir, maximum: 0.5 mA
  • Voltage, Utilisation category DC-12: 24 VDC
  • Current, Utilisation category DC-12: 0.25 A
  • Voltage, Utilisation category DC-13: 24 VDC
  • Current, Utilisation category DC-13: 0.25 A
  • Test pulse interval, typical: 1000 ms
  • Test pulse duration, maximum: 1 ms
  • Classification ZVEI CB24I, Source: C1
  • Classification ZVEI CB24I, Sink: C1
  • Designation, Serial diagnostic SD: OUT
  • Operation current: 10 mA
  • Design of control elements: short-circuit proof, p-type
  • Wiring capacitance: 50 nF
  • PIN 1: A1 Supply voltage UB
  • PIN 2: X1 Safety input 1
  • PIN 3: A2 GND
  • PIN 4: Y1 Safety output 1
  • PIN 5: OUT serial diagnostic output
  • PIN 6: X2 Safety input 2
  • PIN 7: Y2 Safety output 2
  • PIN 8: n.c.
