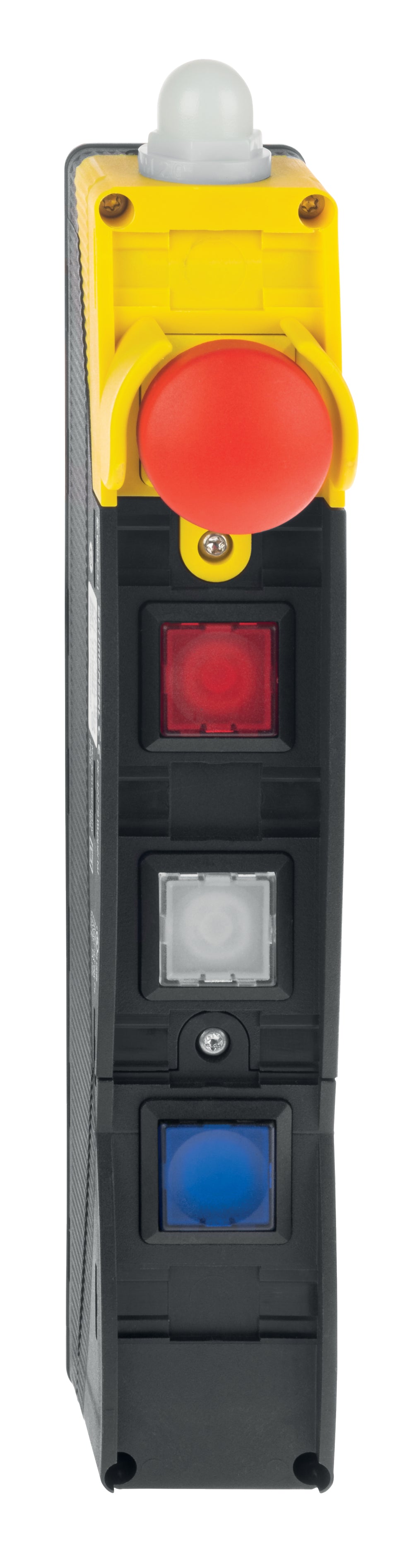

Schmersal BDF200-NHK-10-LT-LT-LT-G24-2875 Bedienfelder, sku: 103007784
Schmersal BDF200-NHK-10-LT-LT-LT-G24-2875 Bedienfelder, sku: 103007784
Regular price
€483,22
Regular price
Sale price
€483,22
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 30.11.2025
Couldn't load pickup availability
SKU: SKU:103007784
- schlankes, schlagfestes Kunststoffgehäuse
- an ergonomisch günstiger Position zu installieren
- an handelsüblichen Alu-Profilsystemen zu befestigen
- Kunststoffgehäuse
- schlankes, schlagfestes Gehäuse
- großes Programm an Leuchttastern, Wahlschaltern, LED-Leuchtmeldern, Schlüsselschaltern und NOT-HALT-Tastern
- Funktionen NOT-HALT, Ein/Aus und Reset verfügbar
- Platzierung der Taster ist auf dem Bedienfeld wählbar
- Beschriftung der Felder mit einer separaten Kunststoffabdeckung
- Frei bestückbare Tastenkappen für optimale Anpassung an die Anlagen
- Product type description: BDF200-NHK-10-LT-LT-LT-G24-2875
- Article number (order number): 103007784
- EAN (European Article Number): 4030661451800
- eCl@ss number, version 12.0: 27-37-12-16
- eCl@ss number, version 11.0: 27-37-12-16
- eCl@ss number, version 9.0: 27-37-12-16
- ETIM number, version 7.0: EC000225
- ETIM number, version 6.0: EC000225
- Note (Ordering data): Notice: see ordering code
- Certificates: cULus
- Standards: EN ISO 13850, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60947-1
- Climatic stress: IEC 60068-2-30
- Versions: Assembly housing
- Housing material: Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Positions used, position 1: Emergency stop, with protective collar
- Positions used, position 2: Illuminated pushbutton, color exchangeable
- Positions used, position 3: Illuminated pushbutton; color exchangeable
- Positions used, position 4: Illuminated pushbutton, color exchangeable
- Gross weight: 280 g
- Emergency-Stop button: Yes
- Indicator lamp: Yes
- Protective collar in housing cover : Yes
- Safety functions: Yes
- Removable Terminals: Yes
- Number of cable wires: 16
- Safety classification
- Standards: EN ISO 13849-1
- Mission time: 20 Year(s)
- B10DNormally-closed contact (NC): 100,000 Operations
- Position of the cable gland: bottom
- Mechanical life, Emergency-Stop button: 100,000 Operations
- Mechanical life, Command devices: 1,000,000 Operations
- Actuating stroke: 3 mm
- Actuating force, maximum: 8 N
- Note (Actuating force): each contact
- Contact force, typically: 1 N
- Mounting: interior mounting holes
- Type of the fixing screws: 2x M5
- Tightening torque of the fastening screws for the housing cover, minimum: 0.7 Nm
- Tightening torque of the fastening screws for the housing cover, maximum: 0.8 Nm
- Tightening torque of the cable gland, maximum: 4 Nm
- Note: Miaximum tightening cable gland cap nut 3 Nm
- Cable entry: M20 cable gland
- Cable cross-section of the cable glands, minimum: 6 mm
- Cable cross-section of the cable glands, maximum: 13 mm
- Wire cross-section: 0.5 mm2
- Terminal (mechanical): Removable screw terminals
- Width: 40 mm
- Height: 69 mm
- Depth: 268 mm
- Degree of protection: IP65
- Ambient temperature: -25 ... +65 °C
- Resistance to vibrations: 10 … 100 Hz, with 20 g
- Restistance to shock: 100 g / 6 ms
- Rated insulation voltage Ui: 250 VAC
- Rated impulse withstand voltage Uimp: 2.5 kV
- Overvoltage category: III
- Overvoltage category: III
- Degree of pollution: 3
- Thermal test current: 2 A, 2.5 A
- Current consumption inidcator lamp: 20 mA
- LED current consumption (operating elements): 16 mA
- Rated operating voltage: 24 VDC
- Utilisation category AC-15: 24 VAC
- Utilisation category AC-15: 2 A
- Utilisation category DC-13: 24 VDC
- Utilisation category DC-13: 1 A
- External wire and device fuse rating: 2.5A T
- Suitable for low-voltages: ≥ 5 V / ≥ 1 mA
- Switching principle: Slow action, cross-point-system
- Maximum switching frequency: 1,200 /h
- Material of the contacts, electrical: Ag-Ni 10, gold-plated
- Colour of the indicator lamp: Red
- Note (applications): Suitable for 40 mm profiles
