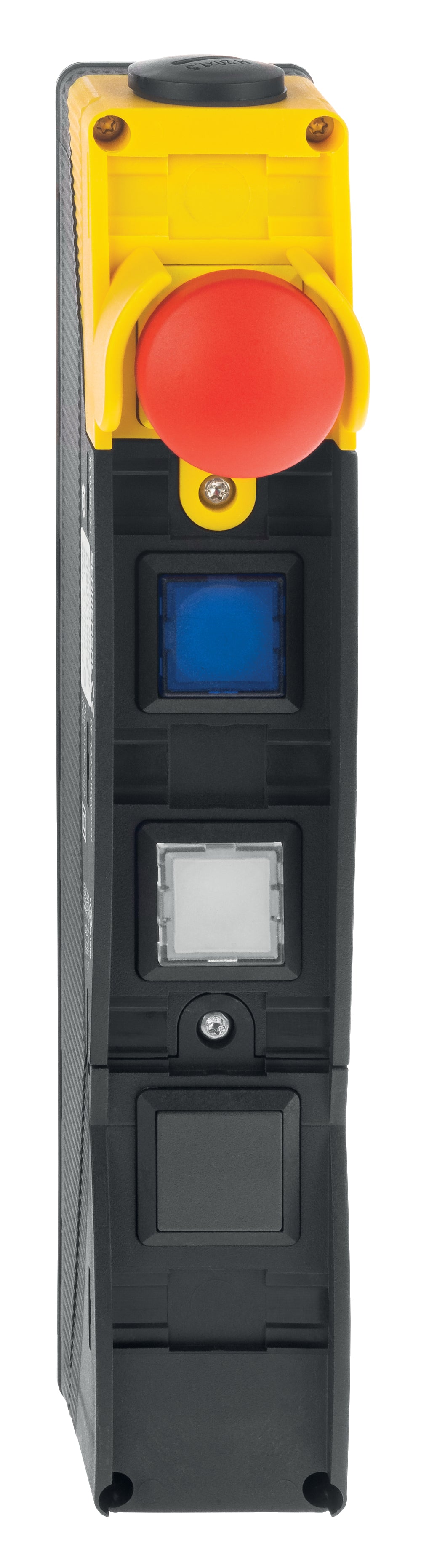

Schmersal BDF200-NHK-20-LTBU-LTWH-B Bedienfeld, sku: 101218883

Schmersal BDF200-NHK-20-LTBU-LTWH-B Bedienfeld, sku: 101218883

€429,19
€429,19
Sale Sold out
Taxes included.

📦 Ready for dispatch: 30.11.2025

SKU: 101218883

  • schlankes, schlagfestes Kunststoffgehäuse
  • an ergonomisch günstiger Position zu installieren
  • an handelsüblichen Alu-Profilsystemen zu befestigen
  • Kunststoffgehäuse
  • schlankes, schlagfestes Gehäuse
  • großes Programm an Leuchttastern, Wahlschaltern, LED-Leuchtmeldern, Schlüsselschaltern und NOT-HALT-Tastern
  • Funktionen NOT-HALT, Ein/Aus und Reset verfügbar
  • Platzierung der Taster ist auf dem Bedienfeld wählbar
  • Beschriftung der Felder mit einer separaten Kunststoffabdeckung
  • Frei bestückbare Tastenkappen für optimale Anpassung an die Anlagen
  • Product type description: BDF200-NHK-20-LTBU-LTWH-B
  • Article number (order number): 101218883
  • EAN (European Article Number): 4030661571751
  • eCl@ss number, version 12.0: 27-37-12-16
  • eCl@ss number, version 11.0: 27-37-12-16
  • eCl@ss number, version 9.0: 27-37-12-16
  • ETIM number, version 7.0: EC000225
  • ETIM number, version 6.0: EC000225
  • Note (Ordering data): Notice: see ordering code
  • Certificates: cULus
  • Standards: EN ISO 13849-1, EN ISO 13850, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60947-1
  • Climatic stress: DIN EN 60068
  • Terminal (mechanical): Removable screw terminals
  • Enclosure material: Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
  • Gross weight: 280 g
  • Positions used, position 1: Emergency stop, with protective collar
  • Positions used, position 2: Illuminated pushbutton, blue
  • Illuminated pushbutton, blue: Illuminated pushbutton, blue
  • Positions used, position 3: Illuminated pushbutton, white
  • Positions used, position 4: Blanking plug
  • Blanking plug: Blanking plug
  • Emergency-Stop button: Yes
  • Front plate mounting: No
  • Safety functions: Yes
  • Removable Terminals: Yes
  • Safety classification: Yes
  • Mission time: 20 Year(s)
  • Position of the cable gland: bottom
  • Mechanical life, Emergency-Stop button: 100,000 Operations
  • Mechanical life, Command devices: 1,000,000 Operations
  • Mounting: interior mounting holes
  • Type of the fixing screws: 2x M5
  • Cable entry: M20 cable gland
  • Cable cross-section of the cable glands, minimum: 6 mm
  • Cable cross-section of the cable glands, maximum: 13 mm
  • Wire cross-section: 0.5 mm2
  • Width: 40 mm
  • Height: 69 mm
  • Depth: 220 mm
  • Length x Width x Height: Depth: 233.5 - 252.5 mm (without and with indicator lamp)
  • Degree of protection: IP65
  • Ambient temperature: -25 ... +65 °C
  • Restistance to shock: 100 g / 6 ms
  • Rated insulation voltage Ui: 250 VAC
  • Rated impulse withstand voltage Uimp: 2.5 kV
  • Overvoltage category: III
  • Degree of pollution: 3
  • Rated operating voltage: 24 VDC
  • Utilisation category DC-13: 24 VDC
  • Utilisation category DC-13: 1 A
  • Suitable for low-voltages: ≥ 5 V / ≥ 1 mA
  • Switching principle: Slow action
