Schmersal BDF200-ST1-AS-NHK-LMRD-LTWH-LTBU AS-Interface Safety at Work, sku: 101215387

Schmersal BDF200-ST1-AS-NHK-LMRD-LTWH-LTBU AS-Interface Safety at Work, sku: 101215387

€581,51
€581,51
Sale Sold out
Taxes included.

📦 Ready for dispatch: 30.11.2025

SKU: 101215387

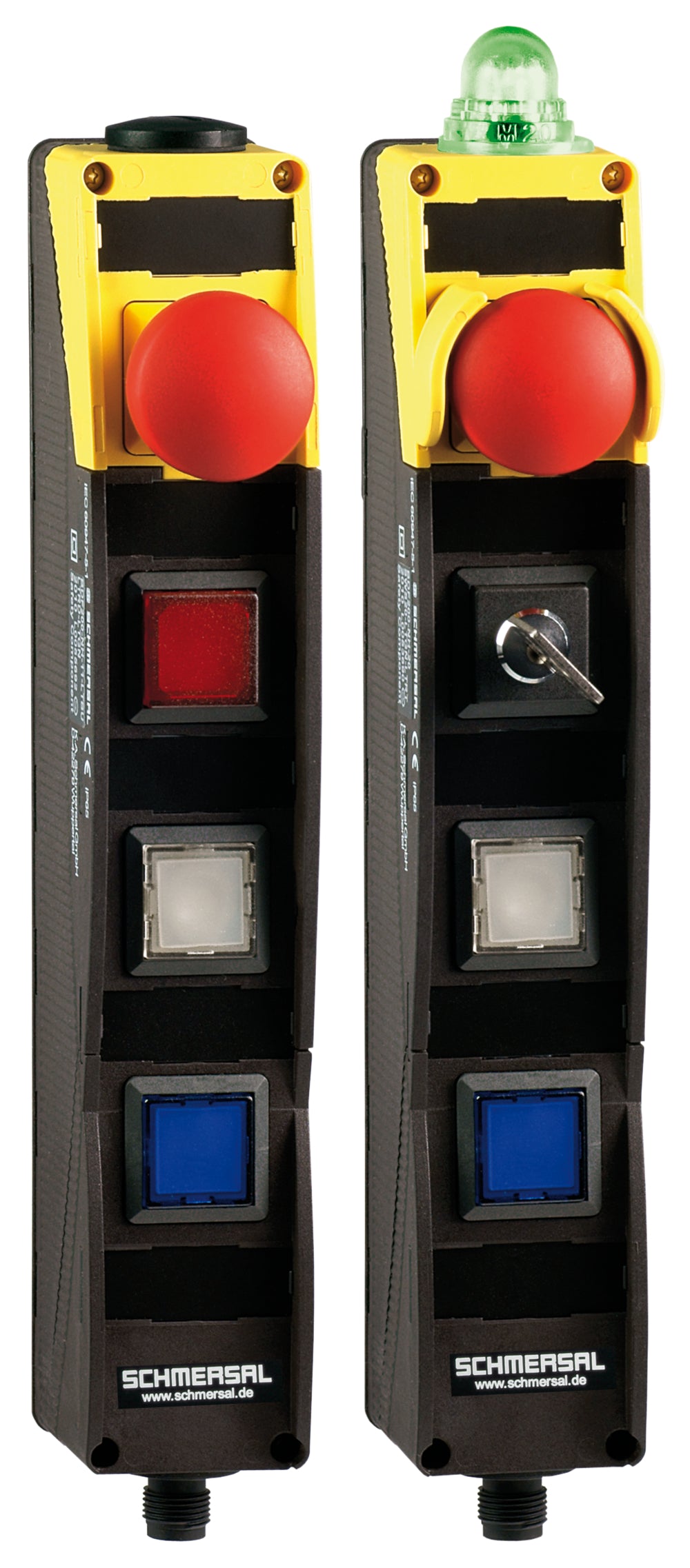

  • Pos 1: NOT-HALT mit Schutzkragen
  • Pos 2: Leuchtmelder ROT
  • Pos 3: Leuchtdrucktaster WEISS
  • Pos 4: Leuchtdrucktaster BLAU
  • Integrierte AS-Interface Schnittstelle
  • mit Einbaustecker M12 unten
  • schlankes, schlagfestes Kunststoffgehäuse
  • an ergonomisch günstiger Position zu installieren
  • an handelsüblichen Alu-Profilsystemen zu befestigen
  • Product type description: BDF200-ST1-AS-NHK-LMRD-LTWH-LTBU
  • Article number (order number): 101215387
  • EAN (European Article Number): 4030661448459
  • eCl@ss number, version 12.0: 27-33-02-04
  • eCl@ss number, version 11.0: 27-33-02-04
  • eCl@ss number, version 9.0: 27-33-02-04
  • ETIM number, version 7.0: EC001415
  • ETIM number, version 6.0: EC001415
  • Certificates: TÜV, cULus, ASi-SaW
  • Standards: EN IEC 62026-2, EN ISO 13849-1, EN ISO 13850, EN IEC 60947-5-1, EN IEC 61508
  • Climatic stress: DIN EN 60068
  • Enclosure material: Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
  • Gross weight: 280 g
  • Reaction time, maximum: 100 ms
  • Positions used, position 1: Emergency stop, with protective collar
  • Positions used, position 2: Illuminated signal, red
  • Positions used, position 3: Illuminated pushbutton, white
  • Positions used, position 4: Illuminated pushbutton, blue
  • Indicator lamp: No
  • Safety classification: No
  • Standards: EN IEC 61508
  • Performance Level, up to: e
  • Category: 4
  • PFH value: 1.40 x 10⁻⁸ /h
  • Note (PFH-value): up to max. 5,000 switching cycles/year
  • Safety Integrity Level (SIL), suitable for applications in: 3
  • Mission time: 20 Year(s)
  • Mechanical life, Emergency-Stop button: 100,000 Operations
  • Mechanical life, Command devices: 1,000,000 Operations
  • Termination: Connector plug M12, 4-pole, (A-coding)
  • Width: 40 mm
  • Height: 69 mm
  • Depth: 233.5 mm
  • Degree of protection: IP65
  • Ambient temperature: -25 ... +65 °C
  • Storage and transport temperature, minimum: -25 °C
  • Storage and transport temperature, maximum: +85 °C
  • Resistance to vibrations: 10 … 150 Hz, amplitude 0.35 mm / 5 g
  • Restistance to shock: 15 g / 11 ms
  • Protection class: II
  • Rated insulation voltage Ui: 32 VDC
  • Rated impulse withstand voltage Uimp: 0.8 kV
  • Overvoltage category: III
  • Degree of pollution: 3
  • Rated operating voltage: 18 ... 31.6 VDC (Protection against polarity reversal)
  • AS-i Current consumption, maximum: 150 mA
  • Note (AS-i Parameter bits): Set the parameter outputs to "1111" (0xF) , FID: periphery error
  • AS-i Version (Safety-Slave): V 3.0
  • AS-i Profile (Safety-Slave): S-7.B.F.F
  • AS-i Input, Channel 1 (Safety-Slave): Data bits DI 0 / DI 1 = dynamic code transmission
  • AS-i Input, Channel 2 (Safety-Slave): Data bits DI 2 / DI 3 = dynamic code transmission
  • AS-i Output, DO 0 (Safety-Slave): Indicator lamp G24 red
  • AS-i Output, DO 1 (Safety-Slave): Indicator lamp G24 green
  • AS-i Output, DO 2 (Safety-Slave): No Function
  • AS-i Output, DO 3 (Safety-Slave): No Function
  • AS-i AS-i Parameter bits (Safety-Slave), P0 ... P3: No function
  • AS-i Version (A/B Slave): V 3.0
  • AS-i Profile (A/B Slave): S-7.A.7.F
  • AS-i Input, DI 0 (A/B Slave): Command device Position 4
  • AS-i Input, DI 1 (A/B Slave): Command device Position 3
  • AS-i Input, DI 2 (A/B Slave): Command device Position 2
  • AS-i Input, DI 3 (A/B Slave): Command device Position 2
  • AS-i Output, DO 0 (A/B Slave): Illuminated signal position 4
  • AS-i Output, DO 2 (A/B Slave): Illuminated signal position 2
  • AS-i Output, DO 1 (A/B Slave): Illuminated signal position 3
  • AS-i Output, DO 3 (A/B Slave): No Function
  • AS-i AS-i Parameter bits (A/B Slave), P0 ... P3: No function
  • AS-i Input module address: 0
  • Note (AS-i Input module address): Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
  • Note: Both AS-i slaves can be enabled and disabled through the integrated DIP switch. The addressing must take place via the M12 connector.
  • PIN 1: AS-Interface +
  • PIN 2: n.c.
  • PIN 3: AS-Interface -
  • PIN 4: n.c.
