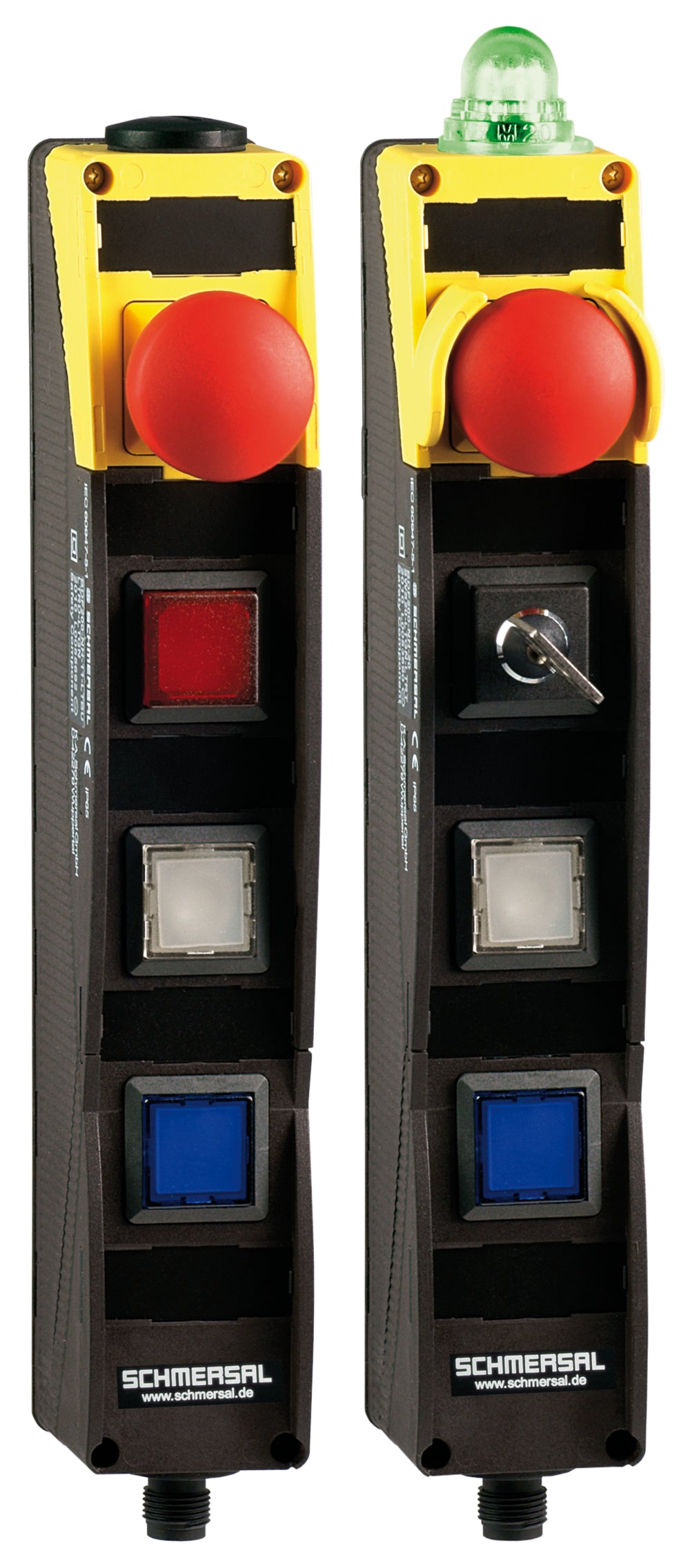

Schmersal BDF200-ST1-AS-NHK-LTWH-LTBU-LTWH AS-Interface Safety at Work
Schmersal BDF200-ST1-AS-NHK-LTWH-LTBU-LTWH AS-Interface Safety at Work
Regular price
€588,42
Regular price
Sale price
€588,42
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 30.11.2025
Couldn't load pickup availability
SKU: SKU:101215280
- Integrierte AS-Interface Schnittstelle
- mit Einbaustecker M12 unten
- Pos 1: NOT-HALT mit Schutzkragen
- Pos 2: Leuchtdrucktaster WEISS
- Pos 3: Leuchtdrucktaster BLAU
- Pos 4: Leuchtdrucktaster WEISS
- schlankes, schlagfestes Kunststoffgehäuse
- an ergonomisch günstiger Position zu installieren
- an handelsüblichen Alu-Profilsystemen zu befestigen
- Product type description: BDF200-ST1-AS-NHK-LTWH-LTBU-LTWH
- Article number (order number): 101215280
- EAN (European Article Number): 4030661448473
- eCl@ss number, version 12.0: 27-37-12-16
- eCl@ss number, version 11.0: 27-37-12-16
- eCl@ss number, version 9.0: 27-37-12-16
- ETIM number, version 7.0: EC000225
- ETIM number, version 6.0: EC000225
- Note (Ordering data): Notice: see ordering code
- Certificates: cULus, ASi-SaW
- Standards: EN IEC 62026-2, EN ISO 13849-1, EN ISO 13850, EN IEC 60947-5-1, EN IEC 61508
- Climatic stress: DIN EN 60068
- Housing material: Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Reaction time, maximum: 100 ms
- Positions used, position 1: Emergency stop, with protective collar
- Positions used, position 2: Illuminated pushbutton, white
- Positions used, position 3: Illuminated pushbutton, blue
- Positions used, position 4: Illuminated pushbutton, white
- Gross weight: 280 g
- Indicator lamp: No
- Safety classification
- Standards: EN IEC 61508
- Performance Level, up to: e
- Category: 4
- PFH value: 1.40 x 10⁻⁸ /h
- Note (PFH-value): up to max. 5,000 switching cycles/year
- Safety Integrity Level (SIL), suitable for applications in: 3
- Mission time: 20 Year(s)
- Mechanical life, Emergency-Stop button: 100,000 Operations
- Mechanical life, Command devices: 1,000,000 Operations
- Mounting: interior mounting holes
- Type of the fixing screws: 2x M5
- Termination: Connector plug M12, 4-pole, (A-coding)
- Width: 40 mm
- Height: 69 mm
- Depth: 233.5 mm
- Degree of protection: IP65
- Ambient temperature: -25 ... +65 °C
- Storage and transport temperature: -25 ... +85 °C
- Resistance to vibrations: 10 … 150 Hz, amplitude 0.35 mm / 5 g
- Restistance to shock: 15 g / 11 ms
- Protection class: II
- Permissible installation altitude above sea level, maximum: 2,000 m
- Rated insulation voltage Ui: 32 VDC
- Rated impulse withstand voltage Uimp: 0.8 kV
- Overvoltage category: III
- Degree of pollution: 3
- Rated operating voltage: 18 ... 31.6 VDC (Protection against polarity reversal)
- AS-i Current consumption, maximum: 150 mA
- Note (AS-i Parameter bits): Set the parameter outputs to "1111" (0xF) , FID: periphery error
- AS-i Version (Safety-Slave): V 3.0
- AS-i Profile (Safety-Slave): S-7.B.F.F
- AS-i Input, Channel 1 (Safety-Slave): Data bits DI 0 / DI 1 = dynamic code transmission
- AS-i Input, Channel 2 (Safety-Slave): Data bits DI 2 / DI 3 = dynamic code transmission
- AS-i Output, DO 0 (Safety-Slave): Indicator lamp G24 red
- AS-i Output, DO 1 (Safety-Slave): Indicator lamp G24 green
- AS-i Output, DO 2 (Safety-Slave): No Function
- AS-i Output, DO 3 (Safety-Slave): No Function
- AS-i AS-i Parameter bits (Safety-Slave), P0 ... P3: No function
- AS-i Version (A/B Slave): V 3.0
- AS-i Profile (A/B Slave): S-7.A.7.F
- AS-i Input, DI 0 (A/B Slave): Command device Position 4
- AS-i Input, DI 1 (A/B Slave): Command device Position 3
- AS-i Input, DI 2 (A/B Slave): Command device Position 2
- AS-i Input, DI 3 (A/B Slave): Command device Position 2
- AS-i Output, DO 0 (A/B Slave): Illuminated signal position 4
- AS-i Output, DO 2 (A/B Slave): Illuminated signal position 2
- AS-i Output, DO 1 (A/B Slave): Illuminated signal position 3
- AS-i Output, DO 3 (A/B Slave): No Function
- AS-i AS-i Parameter bits (A/B Slave), P0 ... P3: No function
- AS-i Input module address: 0
- Note (AS-i Input module address): Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
- Note: Both AS-i slaves can be enabled and disabled through the integrated DIP switch. The addressing must take place via the M12 connector.
- PIN 1: AS-Interface +
- PIN 2: n.c.
- PIN 3: AS-Interface -
- PIN 4: n.c.
