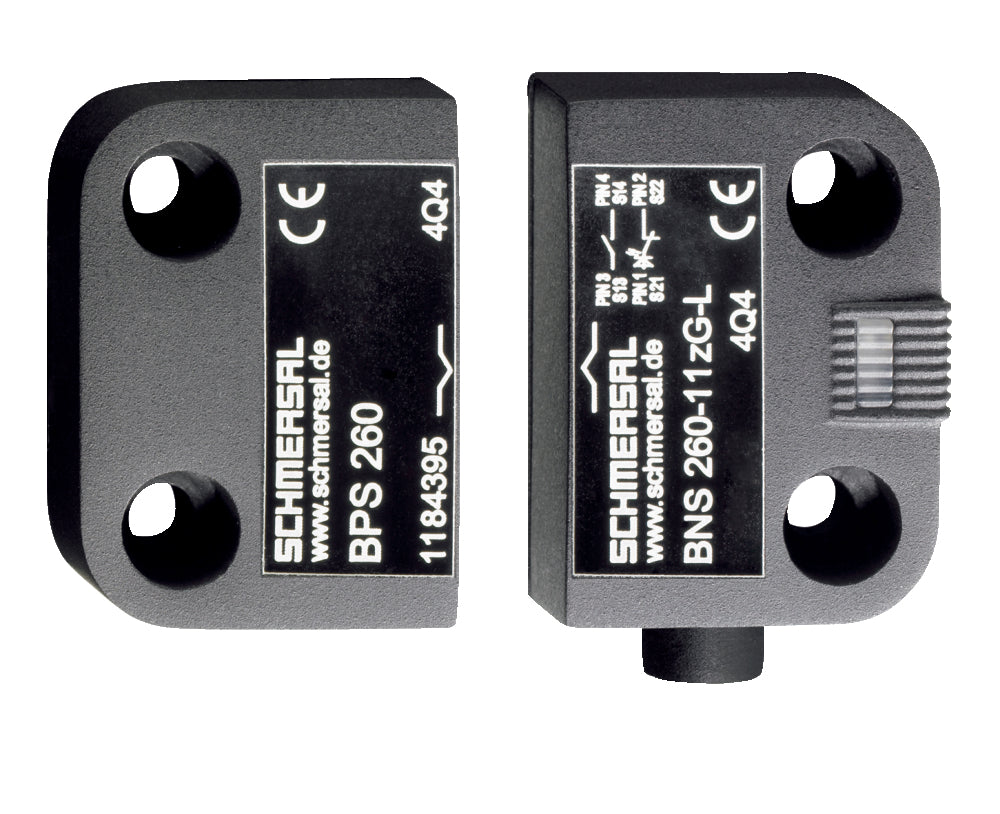

Schmersal BNS 260-11Z-L 3,0M Magnetischer Sicherheitssensor, sku: 101193060

Schmersal BNS 260-11Z-L 3,0M Magnetischer Sicherheitssensor, sku: 101193060

€87,66
€87,66
Sale Sold out
Taxes included.

📦 Ready for dispatch: 04.12.2025

SKU: 101193060

  • Kunststoffgehäuse
  • kleine Bauform
  • verdeckter Einbau möglich
  • 26 mm x 36 mm x 13 mm
  • hohe Lebensdauer
  • kein mechanischer Verschleiß
  • unempfindlich gegen seitlichen Versatz
  • unempfindlich gegen Verschmutzung
  • Product type description: BNS 260-11Z-L 3,0M
  • Article number (order number): 101193060
  • EAN (European Article Number): 4030661354651
  • eCl@ss number, version 11.0: 27-27-24-02
  • eCl@ss number, version 9.0: 27-27-24-02
  • ETIM number, version 7.0: EC002544
  • ETIM number, version 6.0: EC002544
  • Certificates: TÜV, BG, cULus
  • Standards: BG-GS-ET-14, EN IEC 60947-5-3
  • Coding level according to EN ISO 14119: Low
  • Working principle: Magnetic drive
  • Installation conditions (mechanical): quasi-flush
  • Enclosure material: Glass-fibre, reinforced thermoplastic
  • Gross weight: 123 g
  • Number of normally closed (NC): 1
  • Number of normally open (NO): 1
  • Number of safety contacts: 2
  • Number of cable wires: 4
  • Safety classification: 4
  • Standards: EN ISO 13849-1
  • Mission time: 20 Year(s)
  • B10D- Value Normally-closed contact/Normally open contact (NC/NO): 25,000,000 Operations
  • Actuating element: Magnet
  • Direction of motion: Head-on to the active surface
  • Note (Switching distance Sn): Axial misalignment, a horizontal and vertical misalignment of the safety sensor and the actuator are tolerated. The possible misalignment depends on the distance of the active surfaces of the sensor and the actuator. The sensor remains active within the tolerance range.
  • Assured switching distance "ON" Sao: 5 mm
  • Assured switching distance "OFF" Sar: 15 mm
  • Termination: Cable
  • Length of cable: 3 m
  • Wire cross-section: 0.25 mm2
  • Wire cross-section: 23 AWG
  • Material of the Cable mantle: PVC
  • Length of sensor: 13 mm
  • Width of sensor: 26 mm
  • Height of sensor: 36 mm
  • Degree of protection: IP67
  • Ambient temperature: -25 ... +70 °C
  • Storage and transport temperature, minimum: -25 °C
  • Storage and transport temperature, maximum: +70 °C
  • Resistance to vibrations: 10 … 55 Hz, amplitude 1 mm
  • Restistance to shock: 30 g / 11 ms
  • Rated insulation voltage Ui: 50 VAC
  • Rated impulse withstand voltage Uimp: 0.8 kV
  • Required rated short-circuit current: 100 A
  • Switching voltage, maximum: 75 VDC
  • Switching current, maximum: 0.4 A
  • Switching capacity, maximum: 10 VA
  • Switching frequency, maximum: 5 Hz
  • Scope of delivery: Actuator must be ordered separately.
  • Recommendation (actuator): BPS 260
  • Recommended safety switchgear: SRB-E-301ST, SRB-E-201LC
  • Note (General): Contact symbols shown for the closed condition of the guard device., The contact configuration for versions with or without LED is identical.
  • Note (Wiring diagram): The contacts S13-S14 and S21-S22 must be integrated in the safety circuit.
