Schmersal

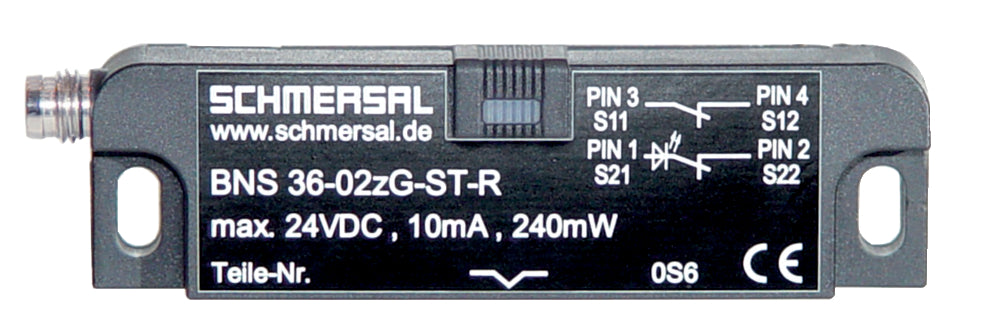

Schmersal BNS 36-02/01Z-ST-R Sicherheits-Sensoren, sku: 101190024

Schmersal BNS 36-02/01Z-ST-R Sicherheits-Sensoren, sku: 101190024

€94,25
€94,25
Sale Sold out
Taxes included.

📦 Ready for dispatch: 04.12.2025

SKU: 101190024

  • Steckverbinder 8 mm, 6-polig, Rastverriegelung
  • Kunststoffgehäuse
  • hohe Lebensdauer
  • kein mechanischer Verschleiß
  • 88 mm x 25 mm x 13 mm
  • verdeckter Einbau möglich
  • unempfindlich gegen seitlichen Versatz
  • unempfindlich gegen Verschmutzung
  • Product type description: BNS 36-02/01Z-ST-R
  • Article number (order number): 101190024
  • EAN (European Article Number): 4030661361543
  • eCl@ss number, version 11.0: 27-27-24-02
  • eCl@ss number, version 9.0: 27-27-24-02
  • ETIM number, version 7.0: EC002544
  • ETIM number, version 6.0: EC002544
  • Certificates: TÜV, BG, cULus
  • Standards: BG-GS-ET-14, EN IEC 60947-5-3
  • Coding level according to EN ISO 14119: Low
  • Working principle: Magnetic drive
  • Installation conditions (mechanical): quasi-flush
  • Enclosure material: Glass-fibre, reinforced thermoplastic
  • Gross weight: 28 g
  • Number of normally closed (NC): 3
  • Number of safety contacts: 2
  • Safety classification: 2
  • Standards: EN ISO 13849-1
  • Mission time: 20 Year(s)
  • B10D Normally-closed contact (NC): 25,000,000 Operations
  • Actuating element: Magnet
  • Door hinge: Right
  • Direction of motion: Head-on to the active surface
  • Note (Switching distance Sn): Axial misalignment, a horizontal and vertical misalignment of the safety sensor and the actuator are tolerated. The possible misalignment depends on the distance of the active surfaces of the sensor and the actuator. The sensor remains active within the tolerance range.
  • Assured switching distance "ON" Sao: 7 mm
  • Assured switching distance "OFF" Sar: 17 mm
  • Termination: Connector 8 mm, 6-pole, Latching interlocking
  • Length of sensor: 13 mm
  • Width of sensor: 88 mm
  • Height of sensor: 25 mm
  • Degree of protection: IP67
  • Ambient temperature: -25 ... +70 °C
  • Storage and transport temperature, minimum: -25 °C
  • Storage and transport temperature, maximum: +70 °C
  • Resistance to vibrations: 10 … 55 Hz, amplitude 1 mm
  • Restistance to shock: 30 g / 11 ms
  • Switching voltage, maximum: 30 VDC
  • Switching current, maximum: 0.4 A
  • Switching capacity, maximum: 10 W
  • Switching frequency, maximum: 5 Hz
  • Scope of delivery: Actuator must be ordered separately.
  • Recommendation (actuator): BPS 36-2
  • Recommended safety switchgear: SRB-E-301ST, SRB-E-201LC
  • Note (General): The number in brackets indicate the PIN number of the connector.
