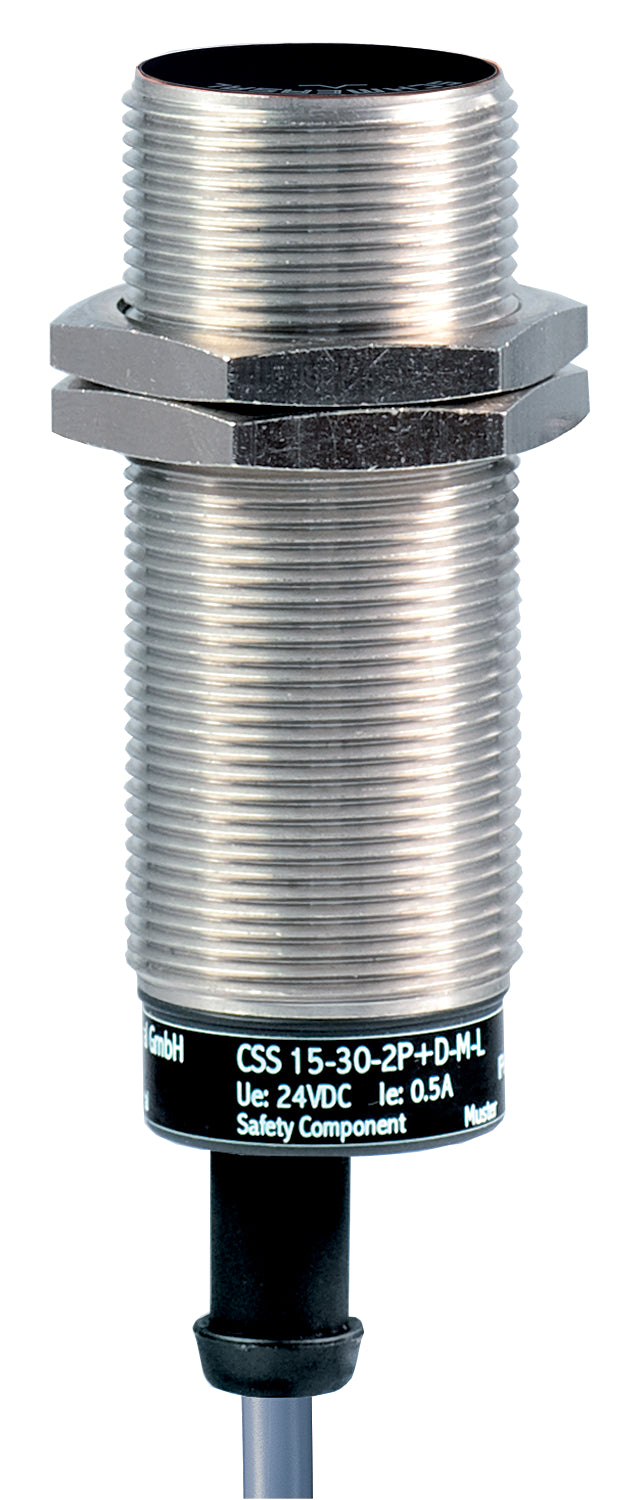

Schmersal CSS 15-30-2P+D-M-L Sicherheits-Sensoren, sku: 101209841

Schmersal CSS 15-30-2P+D-M-L Sicherheits-Sensoren, sku: 101209841

€420,15
€420,15
Sale Sold out
Taxes included.

📦 Ready for dispatch: 30.11.2025

SKU: 101209841

  • Metallgehäuse
  • Es können maximal 16 Sensoren in Reihe geschaltet werden.
  • Anschlussleitung, 7-polig
  • Ø M30
  • große Wiederholgenauigkeit der Schaltpunkte
  • max. Länge der Sensorkette 200 m
  • 2 plusschaltende, kurzschlussfeste Sicherheitsausgänge
  • integrierte Querschluss-, Drahtbruch-, Fremdspannungsüberwachung der Sicherheitsleitungen bis in den Schaltschrank
  • Product type description: CSS 15-30-2P+D-M-L
  • Article number (order number): 101209841
  • EAN (European Article Number): 4030661386805
  • eCl@ss number, version 11.0: 27-27-24-03
  • eCl@ss number, version 9.0: 27-27-24-03
  • ETIM number, version 7.0: EC000030
  • ETIM number, version 6.0: EC000030
  • Certificates: UKCA
  • Standards: EN IEC 60947-5-3, EN IEC 61508
  • Working principle: inductive
  • Housing construction form: Cylinder, thread
  • Installation conditions (mechanical): not flush
  • Sensor topology: Sensor for series wiring
  • Enclosure material: Nickel plated brass
  • Active area: Plastic
  • Gross weight: 248 g
  • Reaction time, maximum: 30 ms
  • Duration of risk, maximum: 30 ms
  • Diagnostic output: Yes
  • Short circuit detection: Yes
  • Cross-circuit detection: Yes
  • Safety functions: Yes
  • Cascadable: Yes
  • Integral system diagnostics, status: Yes
  • Number of LEDs: 1
  • Number of semi-conductor outputs with signaling function: 1
  • Number of fail-safe digital outputs: 2
  • Number of series-wiring of sensors: 16
  • Safety classification: 16
  • Standards: EN ISO 13849-1, EN IEC 60947-5-3, EN IEC 61508
  • Performance Level, up to: e
  • Category: 4
  • PFH value: 2.50 x 10⁻⁹ /h
  • Safety Integrity Level (SIL), suitable for applications in: 3
  • Mission time: 20 Year(s)
  • Actuating panels: Actuation from top
  • Active area: front side
  • Switching distance actuator: Actuator CST 30-1: 12 mm, Actuator CST 30-1: 15 mm, Actuator CST 30-1: 19 mm, Actuator CST 34-S-3: 10 mm, Actuator CST 34-S-3: 12 mm, Actuator CST 34-S-3: 16 mm
  • Hysteresis (Switching distance), maximum: 2 mm
  • Repeat accuracy R: 1 mm
  • Nominal switching distance Sn: 12 mm, 15 mm
  • Assured switching distance "ON" Sao: 10 mm, 12 mm
  • Assured switching distance "OFF" Sar: 16 mm, 19 mm
  • Termination: Cable
  • Note (length of the sensor chain): Cable length and cross-section change the voltage drop dependiing on the output current
  • Length of cable: 2 m
  • Wire cross-section: 0.25 mm2
  • Wire cross-section: 23 AWG
  • ISO thread of the sensor: M30
  • Length of sensor: 101 mm
  • Degree of protection: IP65, IP67
  • Ambient temperature: -25 ... +55 °C
  • Storage and transport temperature, minimum: -25 °C
  • Storage and transport temperature, maximum: +85 °C
  • Resistance to vibrations: 10 … 55 Hz, amplitude 1 mm
  • Restistance to shock: 30 g / 11 ms
  • Protection class: II
  • Rated insulation voltage Ui: 32 VAC/DC
  • Rated impulse withstand voltage Uimp: 0.8 kV
  • Overvoltage category: III
  • Degree of pollution: 3
  • Operating voltage: 24 VDC -15 % / +10 %
  • No-load supply current I0, maximum: 50 mA
  • Rated operating voltage: 24 VDC
  • Operating current: 1,100 mA, 500 mA
  • Required rated short-circuit current: 100 A
  • Switching frequency, approx.: 3 Hz
  • Output current, (fail-safe output), maximum: 0.5 A
  • Design of control elements: p-type
  • Voltage drop Ud, maximum: 0.5 V
  • Leakage current Ir, maximum: 0.5 mA
  • Voltage, Utilisation category DC-12: 24 VDC
  • Current, Utilisation category DC-12: 0.5 A
  • Voltage, Utilisation category DC-13: 24 VDC
  • Current, Utilisation category DC-13: 0.5 A
  • Design of control elements: p-type
  • Voltage drop Ud, maximum: 4 V
  • Voltage, Utilisation category DC-12: 24 VDC
  • Current, Utilisation category DC-12: 0.05 A
  • Voltage, Utilisation category DC-13: 24 VDC
  • Current, Utilisation category DC-13: 0.05 A
  • Interfering radiation: IEC 61000-6-4
  • EMC rating: IEC 61000-6-2
  • PIN 1: A1 Ue Brown
  • PIN 2: X1 safety input 1: Violet
  • PIN 3: A2 GND Blue
  • PIN 4: Y1 Safety output 1 Black
  • PIN 5: OUT diagnostic output: Grey
  • PIN 6: X2 Safety input 2 White
  • PIN 7: Y2 Safety output 2 red
  • Scope of delivery: Actuator must be ordered separately.
  • Scope of delivery of mounting material: 2x Mounting accessories Nuts M30
  • Recommendation (actuator): CST 34-S-3, CST 30-1
  • Recommended safety switchgear: PROTECT PSC1, SRB-E-301ST, SRB-E-201LC
  • Note (General): Evaluation requirements: The switch-off pauses of 250 µs – 1500 µs must be tolerated by the evaluation.The switch-off time of the safety sensor of 250 μs is additionally extended according the cable length and the capacity of the cable used. Typically a switch off time of 500 μs with 100 m of connection cable is reached.
