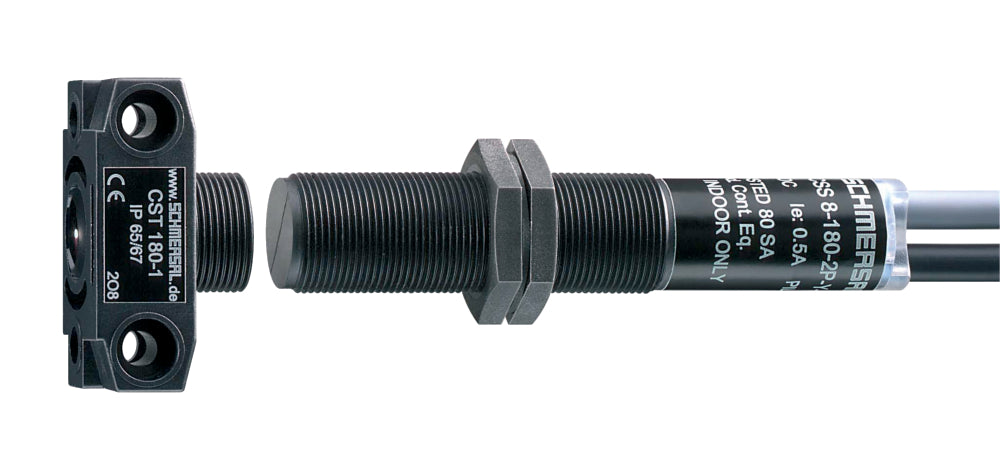

Schmersal EX-CSS 8-180-2P+D-M-L-3G/D Sicherheits-Sensoren, sku: 101189302

Schmersal EX-CSS 8-180-2P+D-M-L-3G/D Sicherheits-Sensoren, sku: 101189302

€496,15
€496,15
Sale Sold out
Taxes included.

📦 Ready for dispatch: 30.11.2025

SKU: 101189302

  • Anschlussleitung 7-polig
  • komfortable Diagnose über Sensor-LED und Meldeausgang
  • Kunststoffgehäuse
  • berührungsloses, codiertes elektronisches System
  • Ø M18
  • versetzt anfahrbar
  • große Wiederholgenauigkeit der Schaltpunkte
  • max. Länge der Sensorkette 200 m
  • Frühwarnung im Einsatz beim Erreichen des Hysteresebereichs
  • selbstüberwachte Reihenschaltung von 16 Sensoren
  • 2 plusschaltende, kurzschlussfeste Sicherheitsausgänge
  • EX-Schutz für die ATEX Zonen 2 und 22
  • Product type description: EX-CSS 8-180-2P+D-M-L-3G/D
  • Article number (order number): 101189302
  • EAN (European Article Number): 4030661347158
  • eCl@ss number, version 11.0: 27-27-24-01
  • eCl@ss number, version 9.0: 27-27-24-01
  • ETIM number, version 7.0: EC002714
  • ETIM number, version 6.0: EC002714
  • Explosion protection: regulations: EN IEC 60079-0, EN IEC 60079-15, EN IEC 60079-31
  • Explosion protection zones: 22, 2
  • Explosion protection category: 3D, 3G
  • Explosion protection designation: D II 3G Ex nA IIB T6 Gc X, D II 3G Ex nA IIB T6 Gc X, D II 3G Ex nA IIC T6 Gc X, D II 3D Ex tc IIIC T70°C Dc X
  • Manufacturer declaration: ATEX Zone 2 and 22
  • Working principle: inductive
  • Housing construction form: Cylinder, thread
  • Installation conditions (mechanical): not flush
  • Sensor topology: Sensor for series wiring
  • Enclosure material: Glass-fibre, reinforced thermoplastic
  • Active area: Glass-fibre, reinforced thermoplastic
  • Material of the nuts: Glass-fibre, reinforced thermoplastic
  • Gross weight: 135 g
  • Reaction time, maximum: 30 ms
  • Duration of risk, maximum: 30 ms
  • Short circuit detection: Yes
  • Cross-circuit detection: Yes
  • Safety functions: Yes
  • Integral system diagnostics, status: Yes
  • Number of semi-conductor outputs with signaling function: 1
  • Number of fail-safe digital outputs: 2
  • Number of series-wiring of sensors: 16
  • Safety classification: 16
  • Standards: EN ISO 13849-1, EN IEC 61508
  • Performance Level, up to: e
  • Category: 4
  • PFH value: 2.50 x 10⁻⁹ /h
  • Safety Integrity Level (SIL), suitable for applications in: 3
  • Mission time: 20 Year(s)
  • Hysteresis (Switching distance), maximum: 0.7 mm
  • Repeat accuracy R: 0.2 mm
  • Impact energy, maximum: 2 J
  • Tightening torque of nuts, maximum: 3 Nm
  • Switch distance, typical: 8 mm
  • Assured switching distance "ON" Sao: 7 mm
  • Assured switching distance "OFF" Sar: 10 mm
  • Termination: Cable
  • Length of cable: 2 m
  • Terminal connector, Output: 7-pole
  • Wire cross-section: 0.25 mm2
  • Wire cross-section: 23 AWG
  • ISO thread of the sensor: M18
  • width across flats: 24 BK
  • Length of sensor: 92 mm
  • Degree of protection: IP65, IP67
  • Ambient temperature: -25 ... +40 °C
  • Storage and transport temperature, minimum: -25 °C
  • Storage and transport temperature, maximum: +85 °C
  • Resistance to vibrations: 10 … 55 Hz, amplitude 1 mm
  • Restistance to shock: 30 g / 11 ms
  • Protection class: II
  • Rated insulation voltage Ui: 32 VDC
  • Rated impulse withstand voltage Uimp: 0.8 kV
  • Overvoltage category: III
  • Degree of pollution: 3
  • Operating voltage: 24 VDC -15 % / +10 %
  • No-load supply current I0, maximum: 50 mA
  • Rated operating voltage: 24 VDC
  • Operating current: 1,000 mA, 500 mA
  • Switching frequency, approx.: 3 Hz
  • Design of control elements: p-type
  • Voltage drop Ud, maximum: 0.5 V
  • Leakage current Ir, maximum: 0.5 mA
  • Voltage, Utilisation category DC-12: 24 VDC
  • Current, Utilisation category DC-12: 0.5 A
  • Voltage, Utilisation category DC-13: 24 VDC
  • Current, Utilisation category DC-13: 0.5 A
  • Design of control elements: p-type
  • Voltage drop Ud, maximum: 4 V
  • Voltage, Utilisation category DC-12: 24 VDC
  • Current, Utilisation category DC-12: 0.05 A
  • Voltage, Utilisation category DC-13: 24 VDC
  • Current, Utilisation category DC-13: 0.05 A
  • Note (LED switching conditions display): Multi-coloured LED: Green, Red, Yellow
  • PIN 1: A1 Ue Brown
  • PIN 2: Y2 Safety output 2 red
  • PIN 3: A2 GND Blue
  • PIN 4: Y1 Safety output 1 Black
  • PIN 5: X1 Safety input 1 violet
  • PIN 6: X2 Safety input 2 White
  • PIN 7: Signalling output Grey
  • Scope of delivery: Actuator must be ordered separately.
  • Scope of delivery of mounting material: 2x nuts M18 x 1
  • Recommendation (actuator): CST 180-1, CST 180-2
  • Note (General): Series-wiring of sensors: 16 safety sensors can be switched in series with self-monitoring. In this case, the dual-channel output of a sensor is switched to/inserted into the input of the next sensor. This does not affect the category 4 in accordance with EN ISO 13849-1., The voltage drop over a long sensor chain should be taken into account when planning cable routing. Operating voltage, cross-section and length of the cable, temperature, number of sensors connected, but also the input load of the control monitor all affect the voltage drop over the sensor chain.
