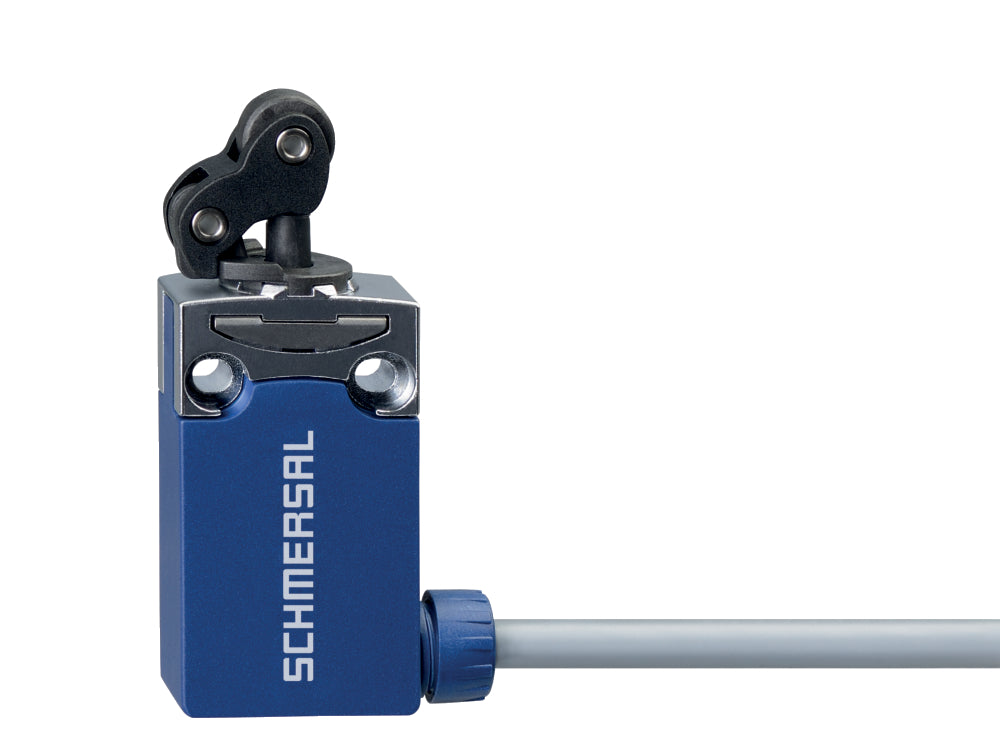

Schmersal PS116-T11-LR200-K210 Positionsschalter, sku: 103006570

Schmersal PS116-T11-LR200-K210 Positionsschalter, sku: 103006570

€69,73
€69,73
Sale Sold out
Taxes included.

📦 Ready for dispatch: 04.12.2025

SKU: 103006570

  • Anschlussleitung rechts, 2 m
  • Schleichschaltung 1 Schließer (NO) / 1 Öffner (NC)
  • Schnellanschlusstechnik durch 45° gedrehte Anschlussklemmen
  • Leitungseinführung 1 x M20 x 1,5
  • Kunststoffgehäuse
  • Symmetrisches Gehäuse
  • Schutzart IP66, IP67
  • Betätigungselemente um 8 x 45° umsetzbar
  • Product type description: PS116-T11-LR200-K210
  • Article number (order number): 103006570
  • EAN (European Article Number): 4030661442198
  • eCl@ss number, version 12.0: 27-27-26-01
  • eCl@ss number, version 11.0: 27-27-26-01
  • eCl@ss number, version 9.0: 27-27-26-01
  • ETIM number, version 7.0: EC000030
  • ETIM number, version 6.0: EC000030
  • Certificates: cURus, CCC
  • Standards: EN IEC 60947-5-1
  • Terminal (mechanical): right
  • Housing construction form: Norm construction design
  • Actuator type to EN 50047: e
  • Enclosure material: Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated
  • Active area: Metal film
  • Gross weight: 175 g
  • Safety functions: Yes
  • Number of auxiliary contacts: 1
  • Number of safety contacts: 1
  • Safety classification: 1
  • Standards: EN ISO 13849-1
  • Mission time: 20 Year(s)
  • B10D Normally-closed contact (NC): 20,000,000 Operations
  • B10D Normally open contact (NO): 1,000,000 Operations
  • Note (B10D Normally open contact (NO)): at 10% Ie and ohmic load
  • Actuating element: Offset roller lever K210
  • Mechanical life, minimum: 10,000,000 Operations
  • Actuating force, minimum: 11 N
  • Positive break force, minimum: 40 N
  • Actuating speed, minimum: 60 mm/min
  • Actuating speed, maximum: 1 m/s
  • Actuating torque, minimum: 0.2 Nm
  • Positive break torque: 0.6 Nm
  • Termination: Pre-wired cable, Cable, 4-pole
  • Length of cable: 2 m
  • Wire cross-section: 0.5 mm2
  • Cable type: LiYY
  • Length of sensor: 16.6 mm
  • Width of sensor: 31 mm
  • Height of sensor: 79 mm
  • Diameter of Castor: 14 mm
  • Degree of protection: IP67, IP66
  • Ambient temperature: -30 ... +80 °C
  • Protection class: II
  • Rated insulation voltage Ui: 300 V
  • Rated impulse withstand voltage Uimp: 4 kV
  • Degree of pollution: 3
  • Required rated short-circuit current: 400 A
  • Utilisation category AC-15: 240 VAC
  • Utilisation category DC-13: 24 VDC
  • Utilisation category DC-13: 1.5 A
  • Switching element: 1 NO contact, 1 NC contacts
  • Switching principle: Slow action
  • Bounce duration, maximum: 3 ms
  • Switching frequency: 5,000 /h
  • Switchover time, maximum: 5.5 ms
  • Material of the contacts, electrical: Silver
