Schmersal

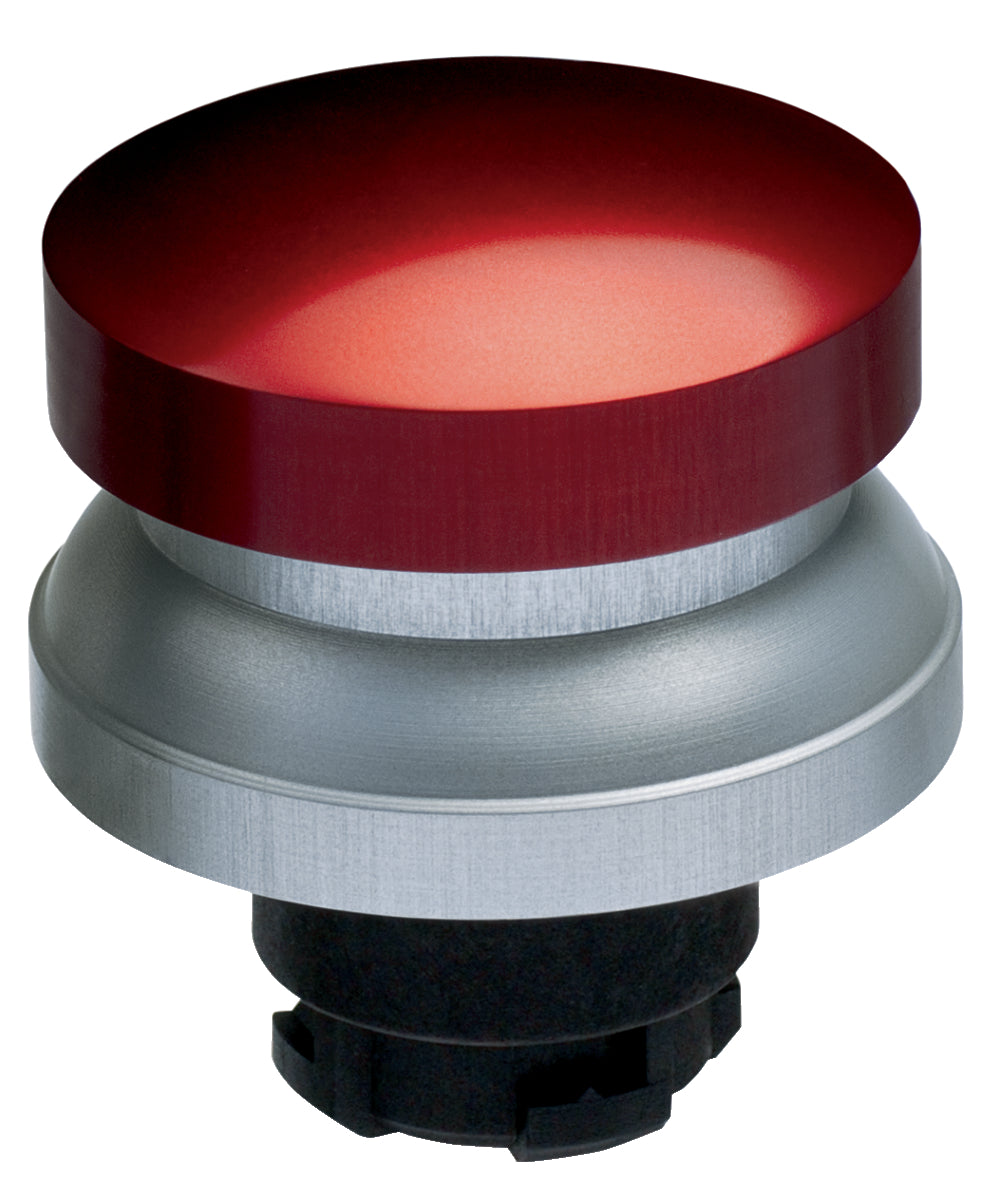

Schmersal RDP40RT RDP – Pilztaster, sku: 101188286

Schmersal RDP40RT RDP – Pilztaster, sku: 101188286

€100,91
€100,91
Sale Sold out
Taxes included.

📦 Ready for dispatch: 04.12.2025

SKU: 101188286

  • ohne Rastung
  • Product type description: RDP40RT
  • Article number (order number): 101188286
  • EAN (European Article Number): 4030661486888
  • eCl@ss number, version 12.0: 27-37-12-12
  • eCl@ss number, version 11.0: 27-37-12-12
  • eCl@ss number, version 9.0: 27-37-12-12
  • ETIM number, version 7.0: EC001038
  • ETIM number, version 6.0: EC001038
  • Standards: EN IEC 60947-5-1, EN IEC 60947-1
  • Versions: Latched pushbutton - Front plate mounting
  • Design: Round
  • Installation conditions (mechanical): arbitrarily
  • Sealing type: Membrane, Lip gaskets, Form seals
  • Material of the operators: Aluminium
  • Material of the front ring: Aluminium
  • Colour of the operating element: Red
  • Colour of the front ring: Silver
  • Gross weight: 50 g
  • Mounting flange: Yes
  • Probing possible : Yes
  • Fully insulated : Yes
  • Unlocking: without
  • Mechanical life, minimum: 1,000,000 Operations
  • Actuating stroke: 4 mm
  • Actuating force, approx.: 2 N
  • Mounting: Mounting flange EFM
  • Tightening torque of the screw: 0.6 Nm
  • Height: 37.5 mm
  • Diameter total: 39.5 mm
  • diameters for the actuating heads: 37 mm
  • Diameter of the front ring: 39.5 mm
  • Mounting diameter: 22.3 mm
  • Thickness, of the front panel, minimum: 1 mm
  • Thickness of the front panel, maximum: 6 mm
  • Spacing: 40 x 50 mm
  • Degree of protection: IP65
  • Ambient temperature: -25 ... +75 °C
  • Restistance to shock: 50 g
  • Switching frequency: 1,200 /h
