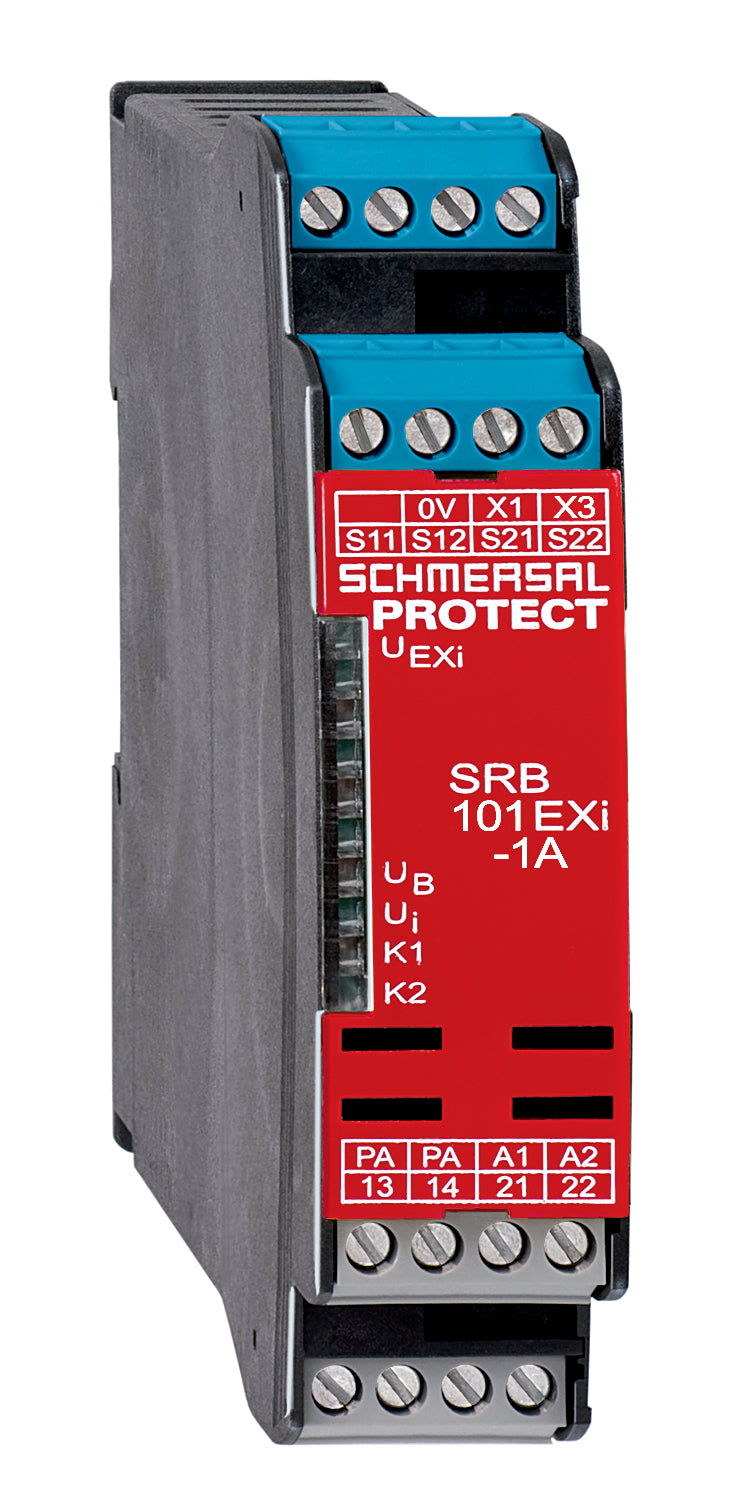

Schmersal SRB101EXi-1A SRB101EXI – Sicherheitsrelaismodule – eigensicher

Schmersal SRB101EXi-1A SRB101EXI – Sicherheitsrelaismodule – eigensicher

€880,04
€880,04
Sale Sold out
Taxes included.

📦 Ready for dispatch: 30.11.2025

SKU: 103037576

  • automatische Reset-Funktion
  • Reset mit abfallender Flanke
  • 1 Sicherheitskontakt
  • Geeignet zur Signalverarbeitung von NOT-HALT-Befehlsgeräten, Verriegelungseinrichtungen etc.
  • Installation in Ex-Zone 2
  • Product type description: SRB101EXi-1A
  • Article number (order number): 103037576
  • EAN (European Article Number): 4030661542744
  • eCl@ss number, version 12.0: 27-37-18-19
  • eCl@ss number, version 11.0: 27-37-18-19
  • eCl@ss number, version 9.0: 27-37-18-19
  • ETIM number, version 7.0: EC001449
  • ETIM number, version 6.0: EC001449
  • Explosion protection: regulations: EN IEC 60079-0, EN IEC 60079-11, EN IEC 60079-15
  • Explosion protection zones: 2
  • Explosion protection category: 3G
  • Explosion protection designation: D II 3 G Ex nA nC IIC T5 Gc (Installation SRB, in Zone 2), D II (2) G [Ex ib Gb] IIC, D II (2) D [Ex ib Db] IIIC
  • Climatic stress: EN 60068-2-78
  • Enclosure material: Glass-fibre reinforced thermoplastic, ventilated
  • Gross weight: 265 g
  • Stop-Category: 0
  • Wire breakage detection : Yes
  • Cross-circuit detection: Yes
  • Automatic reset function: Yes
  • Earth connection detection: Yes
  • Integral system diagnostics, status: Yes
  • Number of auxiliary contacts: 1
  • Number of LEDs: 5
  • Number of normally closed (NC): 2
  • Number of safety contacts: 1
  • Safety classification: 1
  • Standards: EN ISO 13849-1, EN IEC 60947-5-1, EN IEC 61508
  • Safety classification - Relay outputs: EN ISO 13849-1, EN IEC 60947-5-1, EN IEC 61508
  • Performance Level, stop 0, up to: e
  • Category, Stop 0: 4
  • Diagnostic Coverage (DC) Level, Stop 0: ≥ 99 %
  • PFH value, Stop 0: 2.00 x 10⁻⁸ /h
  • Safety Integrity Level (SIL), Stop 0, suitable for applications in: 3
  • Mission time: 15 Year(s)
  • Common Cause Failure (CCF), minimum: 65
  • Mechanical life, minimum: 10,000,000 Operations
  • Mounting: Snaps onto standard DIN rail to EN 60715
  • Terminal designations: IEC/EN 60947-1
  • Cable section, minimum: 0.25 mm²
  • Cable section, maximum: 2.5 mm²
  • Tightening torque of Clips: 0.6 Nm
  • Width: 22.5 mm
  • Height: 100 mm
  • Depth: 121 mm
  • Degree of protection of the enclosure: IP40
  • Degree of protection of the mounting space: IP54
  • Degree of protection of clips or terminals: IP20
  • Ambient temperature: -25 ... +60 °C
  • Storage and transport temperature, minimum: -40 °C
  • Storage and transport temperature, maximum: +85 °C
  • Resistance to vibrations: 10 ... 55 Hz, Amplitude 0.35 mm
  • Restistance to shock: 30 g / 11 ms
  • Rated impulse withstand voltage Uimp: 4 kV
  • Overvoltage category: III
  • Degree of pollution: 2
  • Operating voltage: 24 VDC -10 % / +20 %
  • Ripple voltage: 10 %
  • Current consumption: 57 mA
  • Rated operating voltage: 24 VDC
  • Rated AC voltage for controls at DC minimum: 20.4 VDC
  • Rated control voltage at DC, maximum: 28.8 VDC
  • Utilisation category AC-15: 230 VAC
  • Utilisation category AC-15: 2 A
  • Utilisation category DC-13: 24 VDC
  • Utilisation category DC-13: 2 A
  • Electrical power consumption: 3 W
  • Contact resistance, maximum: 0.1 Ω
  • Note (Contact resistance): in new state
  • Drop-out delay in case of power failure, typically: 20 ms
  • Drop-out delay in case of "emergency stop", maximum: 20 ms
  • Pull-in delay at automatic start, maximum, typically: 300 ms
  • Pull-in delay at RESET, typically: 20 ms
  • Material of the contacts, electrical: AgSn0. self-cleaning, positive drive
  • Conduction resistance, maximum: 30 Ω
  • EMC rating: EMC-Directive
  • Note (applications): Safety sensor, Guard system, Emergency-Stop button, Pull-wire emergency stop switches
  • Note (General): Inductive loads (e.g. contactors, relays, etc.) are to be suppressed by means of a suitable circuit.
  • Note (Wiring diagram): The wiring diagram is shown with guard doors closed and in de-energised condition., Monitoring 1 guard door(s), each with a magnetic safety sensor of the BNS range, If only one external relay or contactor is used to switch the load, the system can be classified in Control Category 3 to ISO 13849-1, if exclusion of the fault “Failure of the external contactor” can be substantiated and is documented, e.g. by using a reliable down-rated contactor. A second contactor leads to an increase in the level of security by redundant switching to switch the load off., To secure a guard door up to PL e and Category 4, The feedback circuit monitors the position of the contactors KA and KB., Automatic start: The automatic start is programmed by connecting the feedback circuit to the terminals X1/X2. If the feedback circuit is not required, establish a bridge.
