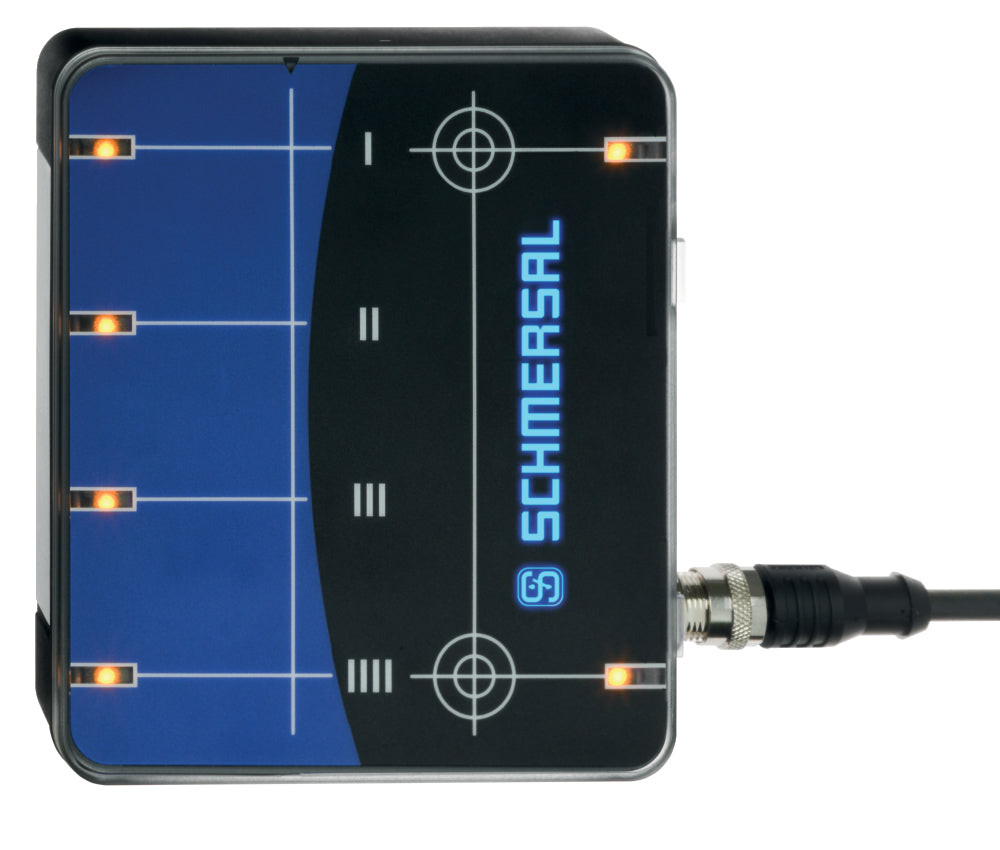

Schmersal SSB-RH-NG-1-O-S-V01 Magnetschalter, sku: 103038397

Schmersal SSB-RH-NG-1-O-S-V01 Magnetschalter, sku: 103038397

€431,81
€431,81
Sale Sold out
Taxes included.

📦 Ready for dispatch: 30.11.2025

SKU: 103038397

  • Magnetspur Sensorbox
  • 4 Spuren, 2 davon mit hochgenauer Winkelsensortechnologie
  • Winkelsensorannäherung mit Vorwarnungsanzeige
  • Wartungsfreie Signalspeicherung und Umschaltung bei Spannungsausfall
  • Weitwinkel LED-Spuranzeige
  • 4 Spuren, 2 optional für Feinpositionierung
  • optional Feinpositionierungsspuren mit Vorwarnungsanzeige
  • Product type description: SSB-RH-NG-1-O-S-V01
  • Article number (order number): 103038397
  • EAN (European Article Number): 4030661566436
  • eCl@ss number, version 12.0: 27-27-43-02
  • eCl@ss number, version 11.0: 27-27-01-05
  • eCl@ss number, version 9.0: 27-27-01-05
  • ETIM number, version 7.0: EC002544
  • ETIM number, version 6.0: EC002544
  • Certificates: cULus
  • Working principle: Magnetic drive
  • Housing material: Plastic, glass-fibre-reinforced
  • Material of the housing cover: Polycarbonate
  • Gross weight: 314 g
  • Latching: Yes
  • Suitable for elevators: Yes
  • Number of LEDs: 7
  • Number of snap-in contacts: 4
  • Number of signalling outputs: 4
  • Actuating panels: front side
  • Actuating element: Magnet
  • Mechanical life, minimum: 1,000,000,000 Operations
  • Minimum distance devices: 50 mm
  • Actuation direction: On when driving over with north magnet in driving direction
  • Actuating speed, maximum: 9 m/s
  • Mounting: rear with 2 threaded bolts
  • Type of the fixing screws: 2x M4
  • Tightening torque of the fixing screws, minimum: 2 Nm
  • Tightening torque of the fixing screws, maximum: 4 Nm
  • Switching distance Smin, minimum: 2 mm
  • Switching distance Smax, maximum: 15 mm
  • Note (switching distance): Recommended 7mm
  • Repeat accuracy R: 0.5 mm
  • Terminal (mechanical): Connector plug M12, 8-pole, A-coded
  • Connector typ: Male connector, M12
  • Connector coding: A
  • Connector latching: Screw locking
  • Number of pol, side A: 8
  • Length of sensor: 125 mm
  • Width of sensor: 110 mm
  • Height of sensor: 24.4 mm
  • Degree of protection: IP54, IP65
  • Ambient temperature: -25 ... +70 °C
  • Storage and transport temperature: -40 ... +85 °C
  • Relative humidity, maximum: 95 %
  • Note (Relative humidity): non-condensing, non-icing
  • Resistance to vibrations: 10 … 55 Hz, amplitude 1 mm
  • Restistance to shock: 30 g / 11 ms
  • Protection class: III
  • Permissible installation altitude above sea level, maximum: 2,000 m
  • Rated insulation voltage Ui: 32 VDC
  • Rated impulse withstand voltage Uimp: 1 kV
  • Overvoltage category: III
  • Degree of pollution: 3
  • Degree of pollution: 3
  • Current consumption at 24V, minimum: 11 mA
  • No-load supply current I0, typical: 40 mA
  • Rated operating voltage: 24 VDC
  • Operating current: 1,500 mA
  • Utilisation category DC-12: 24 VDC
  • Utilisation category DC-12: 0.3 A
  • Utilisation category DC-13: 24 VDC
  • Utilisation category DC-13: 0.3 A
  • Switching capacity, maximum: 7.2 W
  • Switching element: bistable contact
  • Switching principle: Reed and hall technology
  • Bounce duration, maximum: 0.3 ms
  • Maximum switching time close: 1 ms
  • Maximum switching time open: 0.1 ms
  • Output current, maximum: 300 mA
  • Design of control elements: Reed contacts
  • Voltage, Utilisation category DC-12: 24 VDC
  • Current, Utilisation category DC-12: 1.5 A
  • Voltage, Utilisation category DC-13: 24 VDC
  • Current, Utilisation category DC-13: 1.5 A
  • Recommendation (actuator): BP 15, BP 15/2
  • Recommendation (actuator, lift switchgear): BP 15
