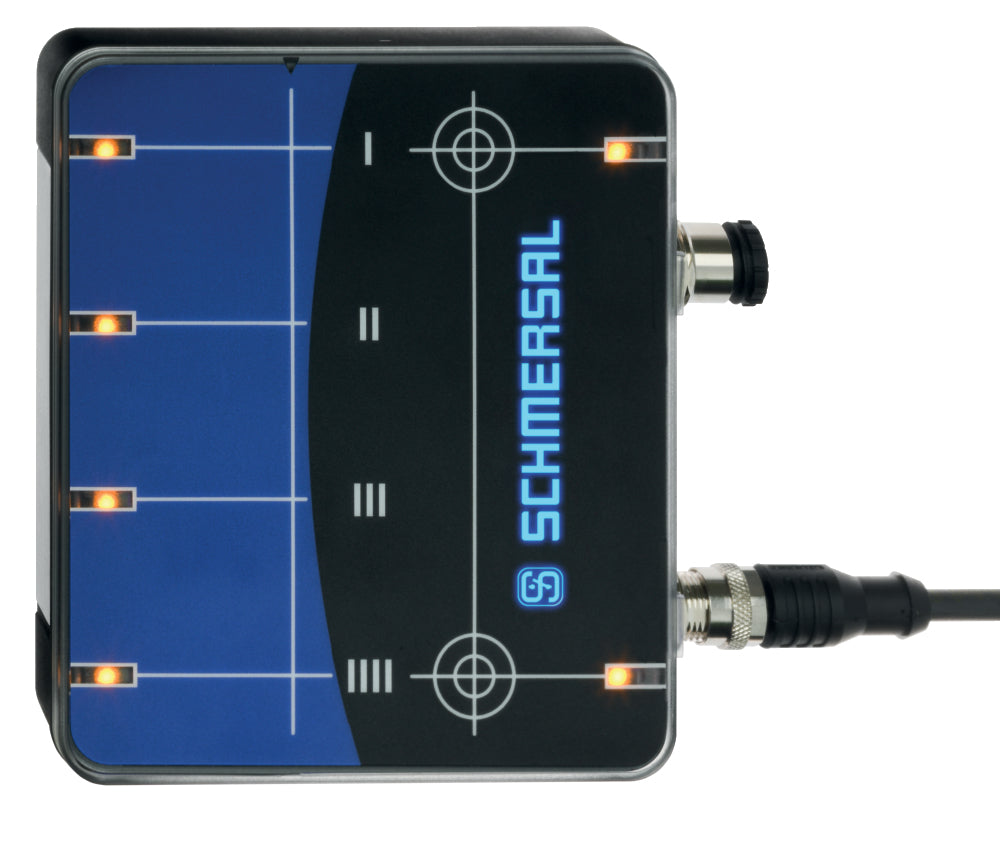

Schmersal SSB-RH-NG-2-O-S-V01 Magnetschalter, sku: 103038399

Schmersal SSB-RH-NG-2-O-S-V01 Magnetschalter, sku: 103038399

€464,34
€464,34
Sale Sold out
Taxes included.

📦 Ready for dispatch: 30.11.2025

SKU: 103038399

  • Magnetspur Sensorbox
  • 4 Spuren, 2 davon mit hochgenauer Winkelsensortechnologie
  • Wartungsfreie Signalspeicherung und Umschaltung bei Spannungsausfall
  • Weitwinkel LED-Spuranzeige
  • Redundante Signalausgabe über zusätzliche M12 Buchse
  • 4 Spuren, 2 optional für Feinpositionierung
  • optional Feinpositionierungsspuren mit Vorwarnungsanzeige
  • Product type description: SSB-RH-NG-2-O-S-V01
  • Article number (order number): 103038399
  • EAN (European Article Number): 4030661566443
  • Working principle: Magnetic drive
  • Terminal (mechanical): Connector plug M12, 8-pole, A-coded
  • Latching: Yes
  • Wire breakage detection : Yes
  • Suitable for elevators: Yes
  • Number of LEDs: 7
  • Number of snap-in contacts: 4
  • Number of signalling outputs: 1
  • Actuating panels: front side
  • Actuating element: Magnet
  • Repeat accuracy R: 0.3 mm
  • Minimum distance devices: 50 mm
  • Actuating speed, maximum: 9 m/s
  • Mounting: rear with 2 threaded bolts
  • Type of the fixing screws: 2x M4
  • Tightening torque of nuts, maximum: 2 Nm
  • Switching distance Smin, minimum: 2 mm
  • Switching distance Smax, maximum: 15 mm
  • Connector typ: Male connector, M12
  • Connector coding: A
  • Connector latching: Screw locking
  • Number of pol, side A: 8
  • Connector typ: Female connector, M12
  • Connector coding: A
  • Connector latching: Screw locking
  • Number of pol, side B: 8
  • Length of sensor: 125 mm
  • Width of sensor: 110 mm
  • Height of sensor: 24.4 mm
  • Degree of protection: IP67
  • Ambient temperature: -25 ... +70 °C
  • Storage and transport temperature, minimum: -40 °C
  • Storage and transport temperature, maximum: +85 °C
  • Relative humidity, maximum: 95 %
  • Degree of pollution: 3
  • Current consumption at 24V, minimum: 11 mA
  • Operating current: 1,500 mA
  • Utilisation category DC-12: 24 VDC
  • Utilisation category DC-12: 0.3 A
  • Utilisation category DC-13: 24 VDC
  • Utilisation category DC-13: 0.3 A
  • Switching capacity, maximum: 7.2 VA
  • Switching element: bistable contact
  • Switching principle: Reed contacts, Non-contact principle
  • Output current, maximum: 300 mA
  • Design of control elements: Reed contacts
  • Voltage, Utilisation category DC-12: 24 VDC
  • Current, Utilisation category DC-12: 1.5 A
  • Voltage, Utilisation category DC-13: 24 VDC
  • Current, Utilisation category DC-13: 1.5 A
  • Recommendation (actuator): BP 15 S, BP 15 N
  • Recommendation (actuator, lift switchgear): BP 15
