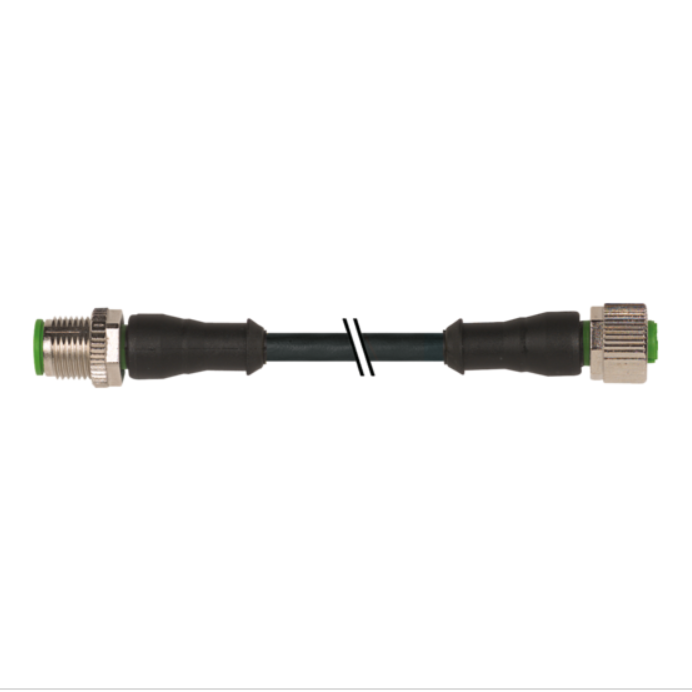

TECHNICAL DATA

Operating voltage: max. 125 V AC/DC

Operating voltage (only UL listed): 30 V AC/DC

Rated surge voltage: 1.5 kV

Operating current per contact: max. 4 A

Material group: IEC 60664-1, category I

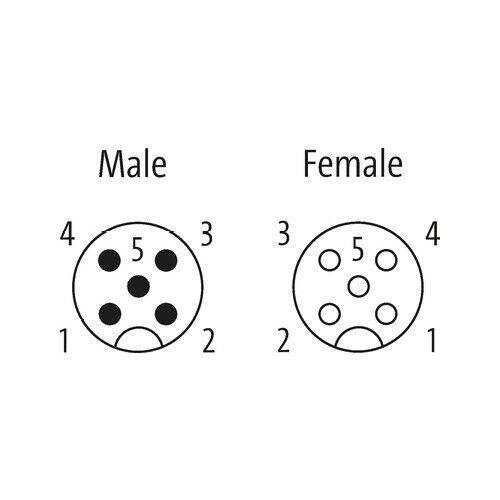

Coding: A-coded

Locking of ports: Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing

Protection: IP65, IP66K, IP67 inserted and tightened (EN 60529)

Material: PUR

Locking material: Zinc die casting, matte nickel plated

Suitable for corrugated tube (internal Ø): 10 mm

Compression gland: M12 (SW13)

GENERAL DATA

Standards: DIN EN 61076-2-101 (M12)

Pollution Degree: 3

Temperature range: -25...+85 °C, depending on cable quality

CABLE DATA

Cable length: 10 m

No./diameter of wires: 5× 0.34 mm²

Wire isolation: PP (br, wh, bl, bk, gnye)

C-track properties: 10 Mio.

Outer Ø: 4.8 mm ±5%

Cable identification: 635

Cable Type: 3 (PUR)

Approval (cable): cURus (AWM-Style 20549/10493); CE conform

Cable weight [g/m]: 41,8 g

Material wire: Cu wire, bare

Resistor (core): max. 57 Ω/km (20 °C)

Single wire Ø (core): 0.1 mm

Construction (core): 42× 0.1 mm (multi-strand wire class 6)

Diameter (core): 5× 0.34 mm²

AWG: similar to AWG 22

Material wire isolation: PP

Material property wire insulation: CFC-, halogen-, cadmium-, silicone- and lead-free

Shore hardness wire isolation: 70 ±5 D

Wire-Ø incl. isolation: 1.25 mm ±5%

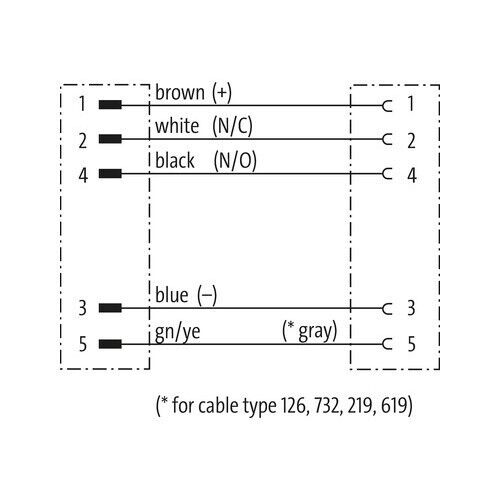

Color/numbering of wires: br, bk, bl, wh, gnye longitudinally striped

Stranding combination: 5 wires twisted around central filler

Shield: no

Material jacket: PUR

Material property (jacket): CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant

Shore hardness jacket: 90 ±5 A

Outer-Ø (jacket): 4.8 mm ±5%

Color jacket: black

Jacket Color: black

Chemical resistance: good resistance to oil, gasoline and chemicals (EN 60811-404)

Thermal resistance: flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2

Nominal voltage: 300 V AC

Test voltage: 2500 V AC

Current load capacity: to DIN VDE 0298-4

Temperature range (fixed): -40...+80 °C

Temperature range (fixed): -40...+80 °C, (+90 °C at max. 10 000 operating hours)

Temperature range (mobile): -25...+80 °C

Temperature range (mobile): -25...+80 °C, (+90 °C at max. 10 000 operating hours)

Bend radius (fixed): 5× outer Ø

Bend radius (moving): 10× outer Ø

Bend radius (moving): 10× outer Ø

No. of bending cycles (C-track): max. 10 Mio. (25 °C)

Travel speed (C-track): max. 3 m/s

Acceleration (C-track): max. 10 m/s²

Torsion stress: ±180°/m

No. of torsion cycles: max. 2 Mio. (25 °C)

Torsion speed: 35 cycles/min

Material jacket: PUR (UL/CSA)

DIMENSIONS, mm
