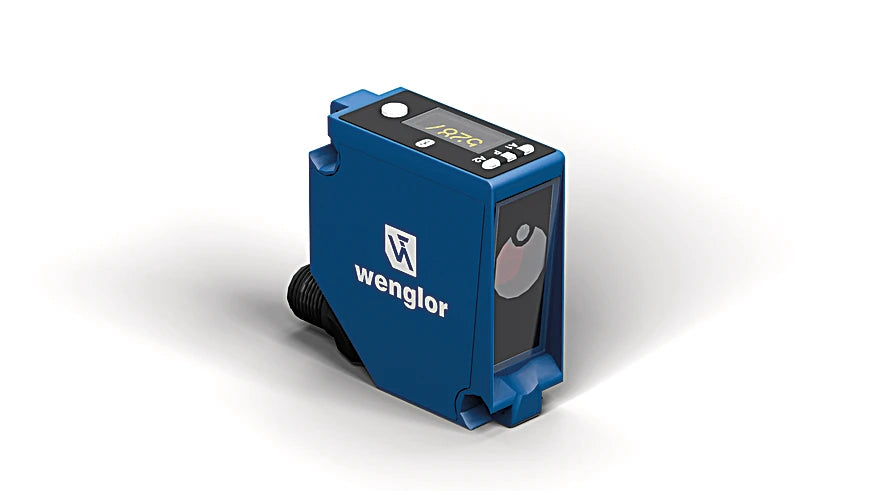

Wenglor P1PX203, ToF Laser Distance Sensor

These sensors operate on the principle of time-of-flight measurement with laser class 1 and reflector/reflective foil. The wintec with "Dynamic Sensitivity" technology (DS) enables a previously unattained reception sensitivity even with very weak signals. This gives the sensors a very large working range of up to 100 m. The wintec also operates very reliably in disturbing environmental conditions such as ambient light or contamination. Extensive condition monitoring functions additionally enable predictive maintenance and trouble-free operation. Settings are made via the easily readable OLED display or using the weCon app via Bluetooth.

Features at a glance

• 2 independent switching outputs
• Large working range and precise detection through DS technology
• No mutual interference
• Wireless settings with Bluetooth
• Graphical display for easy operation
